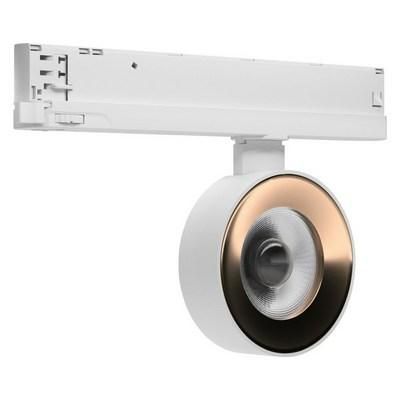

LEDVANCE Osram TR SP COM D100 TR SP COM D100 28W 940 NFL WT/TI

LEDVANCE Osram TR SP COM D100 TR SP COM D100 28W 940 NFL WT/TI

In stock

SKU: 516801

Price on request

€293.41

€0

Overview

3-phase track spotlight with ballast integrated in the track. Product features: Compact track spotlight with ballast integrated in the track. Made in Germany. Luminaire luminous efficacy: up to 85 lm/W. Rotation angle: 350°, tilt angle: 90°. Very good color rendering index Ra: 90. Color rendering index Ra9: >, 60. Initial color consistency: 3 SDCM (threshold unit). Available with beam angle: 25°, 36°. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminum. Available in matt white (similar to RAL9010), matt black (similar to RAL9005), concrete gray (similar to RAL7042). Product advantages: Timeless design suits high-quality interiors. Included 3-phase adapter compatible with common power tracks (NORLUX, GLOBAL, NUCO, NORDIC). No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Accent lighting. Fashion stores, accessories stores. Retail. Hotels, restaurants, shops.

Property	Value
Max. System power:	28.00 W
Rated luminous flux according to IEC 62722-2-1:	2380 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Light source:	LED not replaceable
Protection class:	II
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	260.00 mm
Width:	33.00 mm
Height/Depth:	160.00 mm
With motion detector:	no
Color temperature:	4000 K
Nominal voltage:	220 to 240 V
Rated service life L80/B10 at 25 °C:	50000 h
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	no
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Reflector:	without
Luminous flux:	2380 lm
Cover material:	transparent plastic
Covering of the light with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	yes
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Surface brushed:	no
LED nominal current at constant current:	120 mA
Dimming depending on operating device:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming GPRS:	no
LineSwitch dimming:	no
Manufacturer-specific dimming:	no
Mains voltage modulation dimming:	no
Trailing edge dimming:	no
Phase control dimming:	no
Phase control dimming:	no
Programmable dimming:	no
RF dimming:	no
Sine Wave Reduction dimming:	no
Touch and Dim dimming:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	yes
Light distributor:	Focus lens
Light emission:	direct
Rated service life L70/B50 at 25 °C:	80000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 35 °C
Number of poles:	2
Luminaire luminous efficacy:	85 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Photobiological safety according to EN 62471:	RG1
Color consistency (McAdam ellipse):	SDCM3

Characteristics

Manufacturer

HAN4058075335882

GTIN4058075335882

Covering the luminaire with thermal insulation material possibleNo

Rated lifetime L70/B50 at 25 °C80000 hours

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-12380lm

Rated ambient temperature according to IEC62722-2-1-20 to 35 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width33.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming GPRSNo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming depends on the control gearNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM3

Color temperature4000K

Color rendering index CRI90-100

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionYes

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Height/Depth160.00 mm

LED nominal current at constant current120mA

Luminaire luminous efficacy85lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2380lm

Light distributorFocus lens

Length260.00 mm

Max. system performance28.00 W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionYes

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorWithout

Impact resistanceIK03

IP protection)IP20

Protection classII

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialPlastic transparent

Housing materialAluminum
