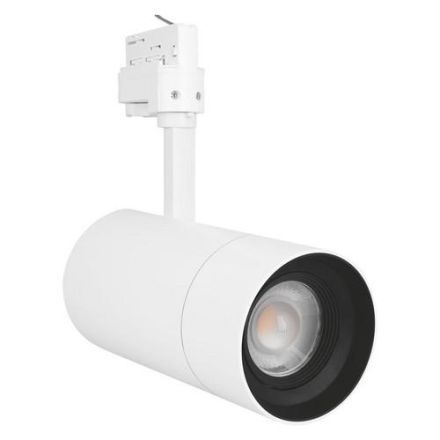

LEDVANCE Osram TR SP ZOOM D85 TR SP ZOOM D85 25W/3000K DIM 97R WT

LEDVANCE Osram TR SP ZOOM D85 TR SP ZOOM D85 25W/3000K DIM 97R WT

In stock

SKU: 516811

Price on request

€159.97

€0

Overview

Dimmable 3-phase track spotlight with mechanical zoom lens. Product features: Mechanical zoom lens with a beam angle of 15 to 55 . Dimmable (7% - 100%) via sliding potentiometer directly on each luminaire. Excellent color rendering index Ra: 97. Color rendering index Ra9: 90. Initial color consistency: 4 SDCM (threshold unit). Angle of rotation: 350, angle of inclination: 90. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminum. Available in matt white (similar to RAL9016), matt black (similar to RAL9004). Luminaire luminous efficacy: up to 70 lm/W. Product advantages: Dimmable 3-phase track spotlight with mechanical zoom lens. Included 3-phase adapter compatible with common power tracks (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC). No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Accent lighting. Galleries, museums. Fashion stores, accessory stores. Shops, dressing rooms, shop windows. Hotels, restaurants, shops.

Property	Value
Max. System power:	25.00 W
Rated luminous flux according to IEC 62722-2-1:	1500 lm
Housing color:	white
Housing material:	aluminum
Protection class (IP):	IP20
Outer diameter:	85.00 mm
Socket:	without
Light source:	LED not replaceable
Protection class:	I
With light source:	yes
With control gear:	yes
Suitable for recessed mounting:	no
Length:	93.00 mm
Width:	85.00 mm
Height/depth:	265.00 mm
With motion detector:	no
Color temperature:	3000 K
Nominal voltage:	100 to 240 V
Color rendering index CRI:	90-100
Suitable for Ceiling mounting:	no
Operating device:	LED operating device, current-controlled
Impact resistance:	IK03
Luminaire with limited surface temperature 'D-mark':	no
Reflector:	high-gloss
Luminous flux:	1500 lm
Cover material:	opal plastic
Covering of the luminaire with thermal insulation material possible:	no
Voltage type:	AC
Light color:	white
Suitable for track mounting:	no
Adjustability:	rotatable and pivotable
Suitable for clamp mounting:	no
Suitable for pendulum suspension:	yes
Suitable for platform/floor mounting:	no
Suitable for truss mounting:	no
With light sensor:	no
Suitable for surface mounting:	yes
Suitable for cable system:	no
Surface:	powder-coated
Brushed surface:	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming DALI:	no
Dimming DMX:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	yes
Dimming LineSwitch:	no
Dimming manufacturer-specific:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Focus lens
Light emission:	direct
Rated service life L70/B50 at 25 °C:	50000 h
Rated ambient temperature according to IEC62722-2-1:	-20 to 40 °C
Power factor:	0.90
Number of poles:	2
Luminaire luminous efficacy:	60 lm/W
Suitable for computer workstations according to EN 12464-1:	no
Glow wire test according to IEC 60695-2-11:	850 °C - 30 s
Photobiological safety according to EN 62471:	RG1
Colour consistency (McAdam ellipse):	SDCM4

Characteristics

Manufacturer

HAN4058075335769

GTIN4058075335769

Covering the luminaire with thermal insulation material possibleNo

Outer diameter85.00 mm

Rated lifetime L70/B50 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-11500lm

Rated ambient temperature according to IEC62722-2-1-20 to 40 °C

Operating deviceLED control gear current controlled

Suitable for computer workstations according to EN 12464-1No

Width85.00 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)Yes

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM4

Color temperature3000K

Color rendering index CRI90-100

VersionWithout

Suitable for surface mountingYes

Suitable for ceiling mountingNo

Suitable for flush mountingNo

Suitable for clamp mountingNo

Suitable for pendulum suspensionYes

Suitable for podium/floor mountingNo

Suitable for rope systemNo

Suitable for busbar mountingNo

Suitable for truss mountingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11850 °C - 30 s

Height/Depth265.00 mm

Power factor0.90

Luminaire with limited surface temperature D-markNo

Luminaire luminous efficacy60lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux1500lm

Light distributorFocus lens

Length93.00 mm

Max. system performance25.00W

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage100 to 240 V

SurfacePowder coated

Brushed surfaceNo

Without dimming functionNo

Photobiological safety according to EN 62471RG1

Number of poles2

ReflectorHigh gloss

Impact resistanceIK03

IP protection)IP20

Protection classI

Voltage typeAC

AdjustabilityRotatable and pivotable

Cover materialPlastic opal

Housing materialAluminum
