LEDVANCE Osram TRACK SP D95 55W TRACK SP D95 55W/4000K 90RA NFL GY

In stock
SKU: 515754
€142.01
Into a basketIn the basketGo

Overview

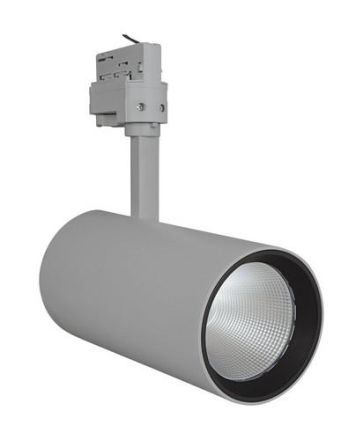

Slim, minimalist 3-phase track spotlight, high wattage. Product features: Compact track spotlight with integrated ballast. Rotation angle: 350°, tilt angle: 90°. Luminaire luminous efficacy: up to 80 lm/W. Available with color temperature 3000 K or 4000 K. Very good color rendering index Ra: > 90. Color rendering index Ra9: > 50. Initial color consistency: 3 SDCM (threshold unit). Equipped with reflector with 24° beam angle. Follows the uniform design language of LEDVANCE (SCALE Design). Housing made of robust die-cast aluminum. Available in matt white (similar to RAL9016), matt black (similar to RAL9004), concrete gray (similar to RAL7042). Product advantages: Included 3-phase adapter compatible with common power tracks (GLOBAL, EUTRAC, POWERGEAR, STAFF, NORLUX, NUCO, NORDIC). Deep reflector and black anti-glare ring for minimal glare (UGR < 16). Reflector is easy to replace thanks to bayonet lock and rubber suction cup. No distraction of attention from the illuminated objects thanks to the compact design. Low-flicker light thanks to special electronic ballast. 5-year guarantee. Areas of application: Direct replacement for luminaires that use HID lamps. Accent lighting. Fashion stores, accessories stores. Retail. Hotels, restaurants, shops. Technical equipment: Accessory reflectors with 15° or 38° beam angle available.

PropertyValue
Max. System power:55.00 W
Rated luminous flux according to IEC 62722-2-1:4200 lm
Housing color:gray
Housing material:aluminum
Protection class (IP):IP20
Outer diameter:95.00 mm
Socket:without
Light source:LED not replaceable
Protection class:I
With light source:yes
With control gear:yes
Suitable for recessed mounting:no
Length:95.00 mm
Width:95.00 mm
Height/depth:297.00 mm
With motion detector:no
Color temperature:4000 K
Nominal voltage:220 to 240 V
Beam angle:medium beam 21-40°
Color rendering index CRI:90-100
Suitable for ceiling mounting:no
Light distribution:symmetrical
Operating device:LED operating device, current-controlled
Impact resistance:IK02
Luminaire with limited surface temperature 'D-mark':no
Reflector:high-gloss
Luminous flux:4200 lm
Cover material:transparent plastic
Covering of the lamp with thermal insulation material possible:no
Voltage type:AC
Light color:white
Suitable for track mounting:no
Adjustability:rotatable and pivotable
Suitable for clamp mounting:no
Suitable for pendulum suspension:yes
Suitable for podium/floor mounting:no
Suitable for truss mounting:no
With light sensor:no
Suitable for Surface mounting:yes
Suitable for cable system:no
Surface:powder-coated
Brushed surface:no
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:no
Dimming DMX:no
Dimming DSI:no
Dimming potentiometer (integrated in device):no
Dimming LineSwitch:no
Dimming manufacturer-specific:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:yes
Light distributor:Reflector
Light emission:direct
Rated service life L70/B50 at 25 °C:50000 h
Rated ambient temperature according to IEC62722-2-1:-20 to 40 °C
Power factor:0.90
Number of poles:2
Luminaire luminous efficacy:75 lm/W
Suitable for computer workstations according to EN 12464-1:no
Glow wire test according to IEC 60695-2-11:650 °C - 30 s
Photobiological safety according to EN 62471:RG1
Color consistency (McAdam ellipse):SDCM3

Characteristics

ManufacturerLEDVANCE Osram
HAN4058075113787
GTIN4058075113787
Covering the luminaire with thermal insulation material possibleNo
Beam angleMedium beam 21-40°
Outer diameter95.00 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-14200lm
Rated ambient temperature according to IEC62722-2-1-20 to 40 °C
Operating deviceLED control gear current controlled
Suitable for computer workstations according to EN 12464-1No
Width95.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALINo
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color consistency (McAdam ellipse)SDCM3
Color temperature4000K
Color rendering index CRI90-100
VersionWithout
Suitable for surface mountingYes
Suitable for ceiling mountingNo
Suitable for flush mountingNo
Suitable for clamp mountingNo
Suitable for pendulum suspensionYes
Suitable for podium/floor mountingNo
Suitable for rope systemNo
Suitable for busbar mountingNo
Suitable for truss mountingNo
Housing colorGray
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth297.00 mm
Power factor0.90
Luminaire with limited surface temperature D-markNo
Luminaire luminous efficacy75lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux4200lm
Light distributorReflector
Light distributionSymmetrical
Length95.00 mm
Max. system performance55.00W
With operating deviceYes
With motion detectorNo
With light sourceYes
With light sensorNo
Nominal voltage220 to 240 V
SurfacePowder coated
Brushed surfaceNo
Without dimming functionYes
Photobiological safety according to EN 62471RG1
Number of poles2
ReflectorHigh gloss
Impact resistanceIK02
IP protection)IP20
Protection classI
Voltage typeAC
AdjustabilityRotatable and pivotable
Cover materialPlastic transparent
Housing materialAluminum
