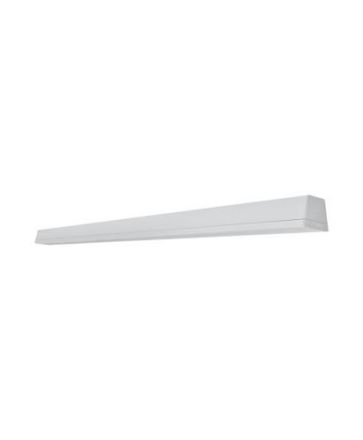

LEDVANCE Osram TRUSYS LED DALI 53W TRUSYS LED DALI 53W 3000K NFL SI

In stock
SKU: 515780
€217.86
Into a basketIn the basketGo

Overview

Luminaire inserts with narrow light emission. Product features: Narrow beam angle: 25°. Light output: up to 135 lm/W. Fixed power taps for the electrical connection. High-quality aluminum housing. Protection class: IP20. Follows the uniform design language of LEDVANCE (SCALE Design). Product advantages: Innovative optical design with drawn rod lens technology over the entire length of the luminaire. Internal luminaire holders prevent the luminaire from falling out during installation. Simple electrical and mechanical connection to the support rail through click-in installation. Deep light distribution for use in high rooms. Clean look, as mounting clips are not visible after installation. Plug-and-play system enables easy installation. High-quality design. Light strips with up to 81 (On-Off) / 99 (DALI) luminaires and a total length of 124 m (On-Off) / 151 m (DALI) possible. Energy savings of up to 65% compared to lights with 2 x 80 W T5 lamps. Version with DALI electronic ballast available. Areas of application: Direct replacement for lights with compact fluorescent lamps. Industrial halls, high-bay warehouses, workshops, hardware stores. Discount stores, supermarkets. Technical equipment: Mounting rail with permanently integrated 5- (on-off) / 7-pin (DALI) cable harness.

PropertyValue
Rated luminous flux according to IEC 62722-2-1:6200 lm
Color temperature:3000 K
With light source:yes
Operating device:EVG
Length:1534.00 mm
Width:71.00 mm
Height/depth:53.00 mm
Protection class (IP):IP20
Protection class:I
Light distribution:symmetrical
Light emission:direct
Suitable for emergency lighting:no
Housing material:aluminium
Housing colour:silver
Colour rendering index CRI:80-89
With control gear:yes
Reflector:without
Socket:without
Nominal voltage:220 to 240 V
Light source:LED not replaceable
Light color:white
Voltage type:AC/DC
Dimming 0-10 V:no
Dimming 1-10 V:no
Dimming DALI:yes
Dimming DMX:no
Dimming manufacturer-specific:no
Dimming DSI:no
Dimming potentiometer (device integrated):no
Dimming LineSwitch:no
Dimming mains voltage modulation:no
Dimming trailing edge:no
Dimming leading edge:no
Dimming programmable:no
Dimming RF:no
Dimming Sine Wave Reduction:no
Dimming Touch and Dim:no
Dimming Zigbee:no
Dimming with push button:no
Without dimming function:no
Light distributor:other
Beam angle:medium beam 21-40°
Rated service life L70/B50 at 25 °C:75000 h
Rated service life L80/B10 at 25 °C:50000 h
Glow wire test according to IEC 60695-2-11:650 °C - 30 s
Max. System power:53.00 W
Power factor:0.95
Wiring type:suitable for through wiring
Number of poles:5
Connection type:other

Characteristics

ManufacturerLEDVANCE Osram
HAN4058075102521
GTIN4058075102521
Connection typeOther
Type of wiringSuitable for through wiring
Beam angleMedium beam 21-40°
Rated lifetime L70/B50 at 25 °C75000 hours
Rated lifetime L80/B10 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-16200lm
Operating deviceElectronic ballast
Width71.00 mm
Dimming 0-10 VNo
Dimming 1-10 VNo
Dimming DALIYes
Dimming DMXNo
Dimming DSINo
Dimming LineSwitchNo
Dimming mains voltage modulationNo
Dimming trailing edgeNo
Dimming phase controlNo
Dimming potentiometer (integrated)No
Dimming RFNo
Dimming Sine Wave ReductionNo
Dimming Touch and DimNo
Dimming ZigbeeNo
Dimming manufacturer-specificNo
Dimming with push buttonNo
Dimming programmableNo
Color temperature3000K
Color rendering index CRI80-89
VersionWithout
Suitable for emergency lightingNo
Housing colorSilver
Glow wire test according to IEC 60695-2-11650 °C - 30 s
Height/Depth53.00 mm
Power factor0.95
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Light distributorOther
Light distributionSymmetrical
Length1534.00 mm
Max. system performance53.00W
With operating deviceYes
With light sourceYes
Nominal voltage220 to 240 V
Without dimming functionNo
Number of poles5
ReflectorWithout
IP protection)IP20
Protection classI
Voltage typeAC/DC
Housing materialAluminum
