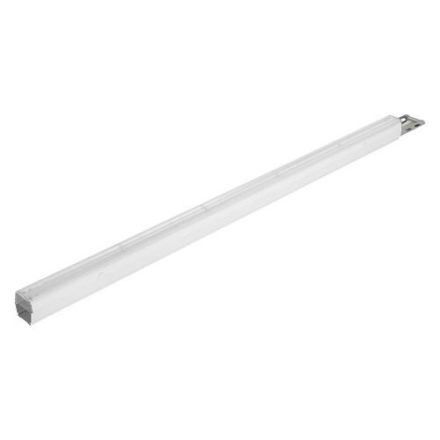

LEDVANCE Osram TRUSYS PFM 70W TruSys© PERFORMANCE DALI WIDE 70W 4000K

LEDVANCE Osram TRUSYS PFM 70W TruSys© PERFORMANCE DALI WIDE 70W 4000K

In stock

SKU: 516794

Price on request

€254.46

€0

Overview

Luminaire inserts with wide light emission and DALI interface. Product features: Direct connection and supply via DALI control unit possible. Beam angle wide: 90. Clickable solution with push buttons. Light output: up to 160 lm/W. Fixed luminaire taps. Lumen package 5600 lm, 8000 lm, 11200 lm. Sheet steel housing. Lens material: PMMA. Protection class: IP20. Uniform family design with LEDVANCE. Service life (L80/B10): up to 60,000h. Product advantages: Extended functions through external DALI ballast. Homogeneous light distribution. Easy installation, tool-free connection. Energy-saving and cost-effective. Flexible application thanks to wide range of different lumen packages and luminaire opening angles. Light strips with up to 66 luminaires possible. Areas of application: Direct replacement for luminaires with fluorescent lamps. Industrial halls, high-bay warehouses, workshops, hardware stores. Discounters, supermarkets. Technical equipment: mounting rail with permanently integrated 8-pin cable harness.

Property	Value
Rated luminous flux according to IEC 62722-2-1:	11200 lm
Color temperature:	4000 K
With light source:	yes
Operating device:	EVG
Length:	1500.00 mm
Width:	66.80 mm
Height/depth:	39.40 mm
Protection class (IP):	IP20
Protection class:	I
Light distribution:	symmetrical
Light emission:	direct
Suitable for emergency lighting:	no
Housing color:	white
Color rendering index CRI:	80-89
With control gear:	yes
Reflector:	without
Socket:	without
Nominal voltage:	220 to 240 V
Light source:	LED not replaceable
Light color:	white
Voltage type:	AC/DC
Dimming 0-10 V:	no
Dimming 1-10 V:	yes
Dimming DALI:	yes
Dimming DMX:	no
Dimming manufacturer-specific:	no
Dimming DSI:	no
Dimming potentiometer (integrated in device):	no
Dimming LineSwitch:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Without dimming function:	no
Light distributor:	Focus lens
Rated service life L70/B50 at 25 °C:	55000 h
Rated service life L80/B10 at 25 °C:	50000 h
Glow wire test according to IEC 60695-2-11:	650 °C - 30 s
Max. System power:	70.00 W
Power factor:	0.90
Wiring type:	suitable for through wiring
Number of poles:	2
Connection type:	other

Characteristics

Manufacturer

HAN4058075291058

GTIN4058075291058

Connection typeOther

Type of wiringSuitable for through wiring

Rated lifetime L70/B50 at 25 °C55000 hours

Rated lifetime L80/B10 at 25 °C50000 hours

Rated luminous flux according to IEC 62722-2-111200lm

Operating deviceElectronic ballast

Width66.80 mm

Dimming 0-10 VNo

Dimming 1-10 VYes

Dimming DALIYes

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color temperature4000K

Color rendering index CRI80-89

VersionWithout

Suitable for emergency lightingNo

Housing colorWhite

Glow wire test according to IEC 60695-2-11650 °C - 30 s

Height/Depth39.40 mm

Power factor0.90

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Light distributorFocus lens

Light distributionSymmetrical

Length1500.00 mm

Max. system performance70.00W

With operating deviceYes

With light sourceYes

Nominal voltage220 to 240 V

Without dimming functionNo

Number of poles2

ReflectorWithout

IP protection)IP20

Protection classI

Voltage typeAC/DC
