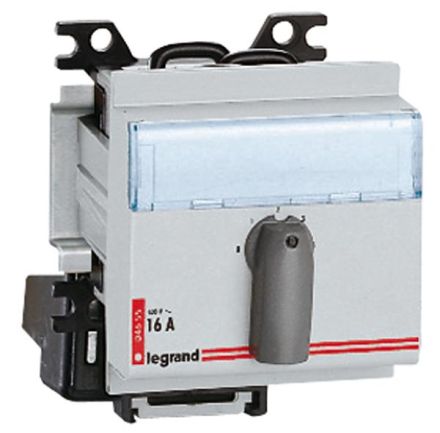

Legrand 004658 rotary switch LEXIC SWITCH WITH KNOB 2-POS

In stock

SKU: 240451

Price on request

€47.44

€0

Overview

According to IEC 669-1, EN 60 669-1,0632 Part 1, switching lever can be locked in both switching positions with accessory order no. 044 42 and padlock, terminals with accessories, order no. 044 44 sealable Utilization category AC 22 according to IEC 947-3,0660 Part 107 Maximum connection cross-section: round wire and flexible with ferrule 4 mm

Property	Value
Rated continuous current Iu:	16 A
Number of poles:	2
Number of switching positions:	3
Degree of protection (IP), front:	IP40
Max. Rated operating voltage Ue at AC:	690 V
With zero position:	yes
With return to zero position:	no
Device design:	Surface-mounted device
Design of the actuating element:	short rotary handle
Complete device in housing:	no
Suitable for front mounting:	no
Front plate size:	other
Suitable for floor mounting:	yes
Switch design:	Changeover switch
