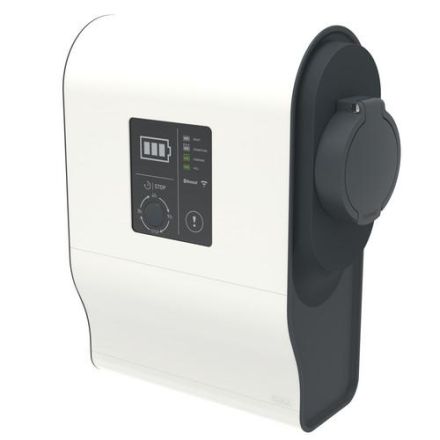

Legrand Green'up wall charging station 3.7/4.6 kW, charging socket type 2 with contact protection, for charging electric vehicles in accordance with IEC 61851-1 Mode 3, 1-phase charging 230 V AC, charging power adjustable: 3.7 or 4.6 kW / charging current 16 or 20 A. Number of charging points: 1, protection class IP 44 - IK 08, material: plastic, color: white/black, dimensions (HxWxD): 365 x 295 x 140 mm, for mounting directly on the wall or as a column with base Order No. 059052 (optional). Operation of the charging station using a function button for direct ON/OFF switching and charging or delayed switching on of the charging process by 3, 6 or 9 hours. Illuminated status display for easy recognition of the operating status. Programmable daily charging/energy management and access lock via integrated Bluetooth and the EV-Charge app. Control function and remote configuration with smartphone or PC via IP (RJ45) or WiFi, expandable with communication set Order No. 059056, protocols: OCPP 1.6 and 2.0, Modbus RS485. Integrated DC fault current detection. Each charging station must be protected in accordance with regulations with a residual current device and a circuit breaker in accordance with local connection conditions.
