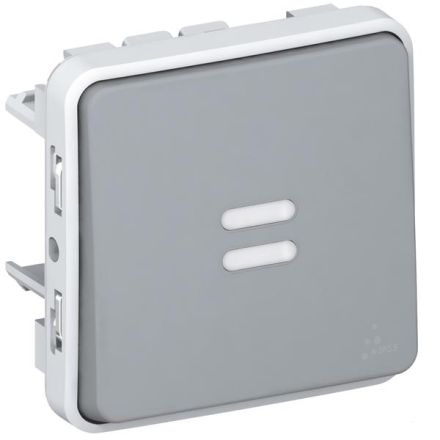

Legrand 069513 rocker switch 69513 FR AP Plexo IP55, (grey)

Legrand 069513 rocker switch 69513 FR AP Plexo IP55, (grey)

In stock

SKU: 242984

Price on request

€13.11

€0

Into a basketIn the basketGo

Overview

Rocker switch on/off illuminated damp room Modular Plexo 55 gray

Property	Value
Color:	gray
Suitable for protection class (IP):	IP55
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	other
Push button:	no
Composition:	Base element with central cover plate
Mounting type:	other
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7046
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	other
Lighting:	yes
Lighting type:	neon lamp
Lighting function:	Orientation
Rated current:	10 A
Installation depth:	40 mm
Device depth:	40 mm
Device width:	64 mm
Device height:	64 mm
With mounting plate:	no
Text field/labeling area:	no
Min. Depth of the device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

Feedback contactNo

Number of actuating rockers1

Circuit typeChangeover switch

LightingYes

Switching current for fluorescent lamps10 AX

Push buttonNo

Washing machine switchNo

Lighting functionOrientation

Manufacturer

HAN069513

GTIN3245060695132

Connection typeOther

Surface finishFrosted

Operating modeRocker/Button

Mounting typeOther

Rated current10A

Installation depth40 mm

Color

Suitable for outdoor useNo

Suitable for protection class (IP)IP55

Device width64 mm

Device height64 mm

Device depth40 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateNo

Mounting typeOther

Nominal voltage250V

SurfaceUntreated

RAL number (similar)7046

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with central cover plate

Legrand 069513 rocker switch 69513 FR AP Plexo IP55, (grey)

Legrand 069513 rocker switch 69513 FR AP Plexo IP55, (grey)

Price on request

€13.11

€0

Into a basketIn the basketGo
