Legrand 069716 rocker switch Plexo IP55 69716 cross FR AP, (grey)

Legrand 069716 rocker switch Plexo IP55 69716 cross FR AP, (grey)

In stock

SKU: 243001

Price on request

€13.81

€0

Into a basketIn the basketGo

Overview

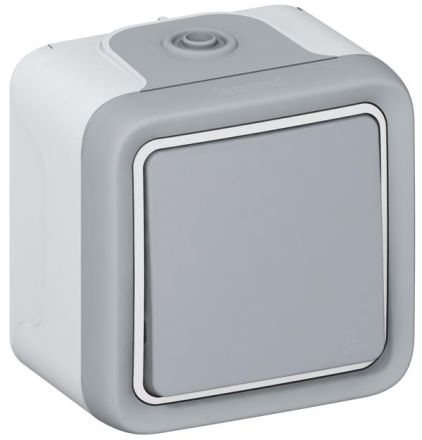

Rocker switch cross damp room surface-mounted Plexo 55 gray

Property	Value
Color:	gray
Suitable for protection class (IP):	IP55
Circuit type:	Cross switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7046
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	other
Lighting:	no
Lighting type:	other
Lighting function:	other
Rated current:	10 A
Device depth:	57 mm
Device width:	80 mm
Device height:	84 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

Feedback contactNo

Number of actuating rockers1

Circuit typeCross switch

LightingNo

Switching current for fluorescent lamps10 AX

Push buttonNo

Washing machine switchNo

Lighting functionOther

Manufacturer

HAN069716

GTIN3245060697167

Connection typeOther

Surface finishFrosted

Operating modeRocker/Button

Mounting typeScrew fastening

Rated current10A

Color

Suitable for outdoor useNo

Suitable for protection class (IP)IP55

Device width80 mm

Device height84 mm

Device depth57 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateNo

Mounting typeSurface-mounted

Nominal voltage250V

SurfaceUntreated

RAL number (similar)7046

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with complete housing

Legrand 069716 rocker switch Plexo IP55 69716 cross FR AP, (grey)

Legrand 069716 rocker switch Plexo IP55 69716 cross FR AP, (grey)

Price on request

€13.81

€0

Into a basketIn the basketGo
