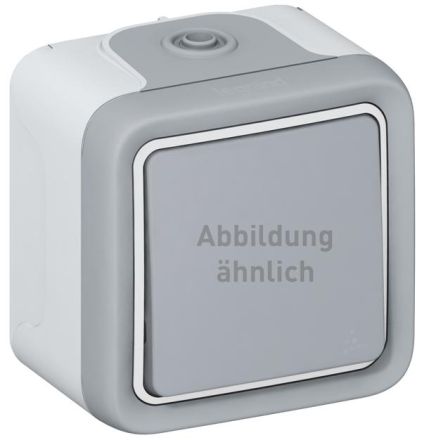

Legrand 069726 rocker switch Plexo IP55 69726 off- 2-pole control FR AP, (grey)

Legrand 069726 rocker switch Plexo IP55 69726 off- 2-pole control FR AP, (grey)

In stock

SKU: 243002

Price on request

€17.53

€0

Into a basketIn the basketGo

Overview

Label field heating EMERGENCY STOP, including glow lamp Order no. 694 98

Property	Value
Color:	gray
Suitable for protection class (IP):	IP55
Circuit type:	2-pole switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Fastening type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7046
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	other
Lighting:	yes
Lighting type:	neon lamp
Lighting function:	illuminated when switched on
Rated current:	10 A
Device depth:	57 mm
Device width:	80 mm
Device height:	84 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

Feedback contactNo

Number of actuating rockers1

Circuit typeSwitch 2-pole

LightingYes

Switching current for fluorescent lamps10 AX

Push buttonNo

Washing machine switchNo

Lighting functionIlluminated when switched on

Manufacturer

HAN069726

GTIN3245060697266

Connection typeOther

Surface finishFrosted

Operating modeRocker/Button

Mounting typeScrew fastening

Rated current10A

Color

Suitable for outdoor useNo

Suitable for protection class (IP)IP55

Device width80 mm

Device height84 mm

Device depth57 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateNo

Mounting typeSurface-mounted

Nominal voltage250V

SurfaceUntreated

RAL number (similar)7046

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with complete housing

Legrand 069726 rocker switch Plexo IP55 69726 off- 2-pole control FR AP, (grey)

Legrand 069726 rocker switch Plexo IP55 69726 off- 2-pole control FR AP, (grey)

Price on request

€17.53

€0

Into a basketIn the basketGo
