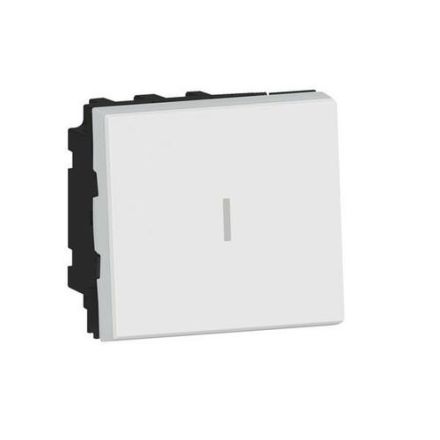

Legrand 077063L MSC 20A 2-pole screw terminals 2-mod.ultrws changeover switch

Legrand 077063L MSC 20A 2-pole screw terminals 2-mod.ultrws changeover switch

In stock

SKU: 935416

Price on request

€14.65

€0

Into a basketIn the basketGo

Overview

Mosaic changeover switch EASYLED20A 2-pin, screw terminals, 2-module, can be illuminated with LED Color: Ultra white

Property	Value
Color:	white
Suitable for protection class (IP):	IP31
Circuit type:	Changeover switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Module carrier
Push button:	no
Composition:	Modular device for installation switch programs
Mounting type:	snap-in
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Switching current for fluorescent lamps:	20 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	2
Lighting:	no
Lighting type:	other
Lighting function:	other
Rated current:	20 A
Installation depth:	32 mm
Device depth:	44 mm
Device width:	45 mm
Device height:	45 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of the device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

Feedback contactNo

Number of actuating rockers1

Circuit typeChangeover switch

LightingNo

Switching current for fluorescent lamps20 AX

Push buttonNo

Washing machine switchNo

Lighting functionOther

HABMSC 20A 2-pole screw terminals 2-mod.ultrws

Manufacturer

HAN077063L

GTIN3414971575554

Connection typeScrew terminal

Number of modules (for modular construction)2

Surface finishGlittering

Operating modeRocker/Button

Mounting typeSnap into place

Rated current20A

Installation depth32 mm

Color

Suitable for protection class (IP)IP31

Device width45 mm

Device height45 mm

Device depth44 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateNo

Mounting typeModule carrier

Nominal voltage250V

SurfaceUntreated

RAL number (similar)9003

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationModular device for installation switch programs

Legrand 077063L MSC 20A 2-pole screw terminals 2-mod.ultrws changeover switch

Legrand 077063L MSC 20A 2-pole screw terminals 2-mod.ultrws changeover switch

Price on request

€14.65

€0

Into a basketIn the basketGo
