Insert Module TypeLight switch covers
ColorWhite

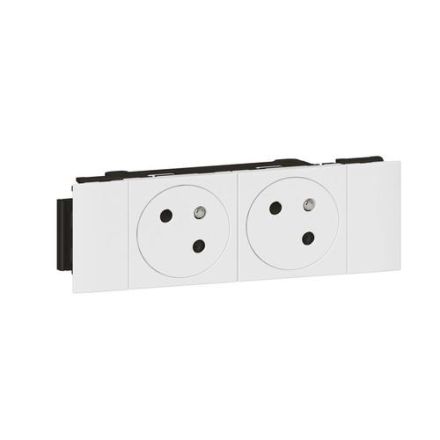

HAB077102L MSC Link 2x F/B DLPClip ultra white
HAN077102L
GTIN3414971575752
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units2
Number of modules (for modular construction)4
Number of phases1
Number of active contacts (approx.)2
Surface finishGlittering
Ejection mechanismNo
Mounting typeSnap-on fastening
Residual current protectionNo
Frequency50 to 60 Hz
Suitable for protection class (IP)IP40
Device width139.5 mm
Device height47 mm
Device depth43 mm
Halogen freeYes
Insulated installationNo
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeDevice installation channel
Nominal voltage230V
Rated current16A
SurfaceUntreated
RAL number (similar)9003
Impact resistanceIK04
Protective contactYes
Protective conductor contact roundYes
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
