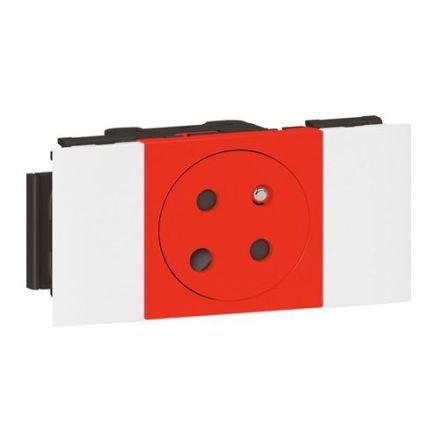

Legrand 077121L Mosaic SnapOn F/B rt socket

In stock

SKU: 934794

Price on request

€10.43

€0

Overview

Mosaic socket Snap-ON F/B Standard, plug-in terminals, coded, increased contact protection, color: red

Property	Value
RAL number (similar):	3020
Number of units:	1
Color:	red
Suitable for protection class (IP):	IP40
Nominal voltage:	230 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Device installation duct
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	additional safety supply (red)
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-in fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	glossy
Number of modules (with modular construction):	2
Device width:	95 mm
Device height:	47 mm
Device depth:	43 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	yes
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Insert Module TypeLight switch covers

HAB077121L Mosaic SnapOn F/B rt

Manufacturer

HAN077121L

GTIN3414971576117

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)2

Number of phases1

Number of active contacts (approx.)1

Surface finishGlittering

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP40

Device width95 mm

Device height47 mm

Device depth43 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeDevice installation channel

Nominal voltage230V

Rated current16A

SurfaceUntreated

RAL number (similar)3020

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundYes

Special power supplyAdditional safety supply (red)

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
