Insert Module TypeLight switch covers
ColorWhite

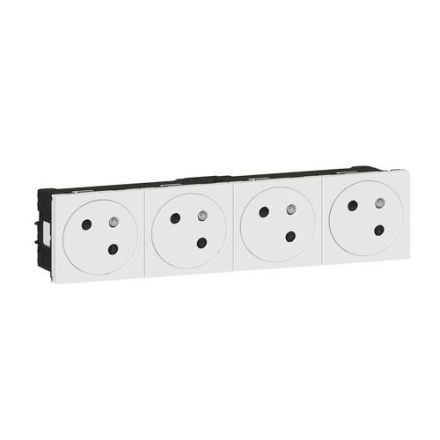

HAB077144L Mosaic Link 4x 45° F/B ultra white
HAN077144L
GTIN3414971576445
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units4
Number of modules (for modular construction)8
Number of phases1
Number of active contacts (approx.)4
Surface finishGlittering
Ejection mechanismNo
Mounting typeSnap-on fastening
Residual current protectionNo
Frequency50 to 60 Hz
Suitable for protection class (IP)IP40
Device width180 mm
Device height45 mm
Device depth40 mm
Halogen freeYes
Insulated installationNo
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidNo
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionYes
Mounting typeModule carrier
Nominal voltage250V
Rated current16A
SurfaceUntreated
RAL number (similar)9003
Impact resistanceIK07
Protective contactYes
Protective conductor contact roundYes
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertYes
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
