Legrand 077220 Mosaic antibakt SK rt socket

In stock

SKU: 934797

Price on request

€13.86

€0

Overview

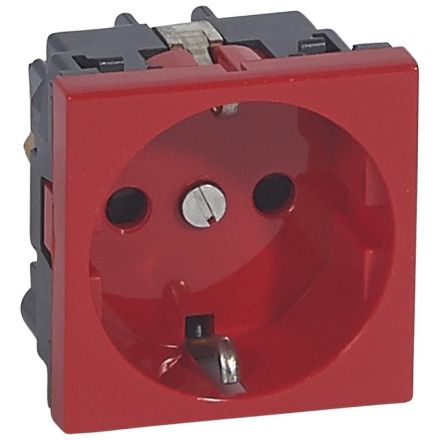

Mosaic earthed socket, screw terminals, antibacterial, increased contact protection, color: red

Property	Value
RAL number (similar):	3020
Number of units:	1
Color:	red
Suitable for protection class (IP):	IP41
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Module carrier
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	additional safety supply (red)
Twisted central insert:	no
Printing/marking:	without
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-in fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface protection:	untreated
Surface finish:	glossy
For 'difficult conditions' according to VDE:	no
Number of modules (with modular construction):	2
Device width:	45 mm
Device height:	45 mm
Device depth:	39.5 mm
Insulated installation:	yes
With loop-through function:	yes
With on/off switch:	no
With function lighting:	no
With orientation light:	no
Impact resistance:	IK04
Transparent:	no
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	yes
Min. Depth of the device box:	40 mm
Metallic color:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Insert Module TypeLight switch covers

HAB077220 Mosaic antibacterial SK rt

Minimal order10 pcs

Manufacturer

HAN077220

GTIN3245060772208

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentYes

Number of Units1

Number of modules (for modular construction)2

Number of phases1

Number of active contacts (approx.)1

Printing/markingWithout

Surface finishGlittering

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP41

Device width45 mm

Device height45 mm

Device depth39.5 mm

Halogen freeYes

IFTTT support availableNo

Insulated installationYes

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Min. depth of the device box40 mm

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With increased contact protectionYes

Mounting typeModule carrier

Nominal voltage250V

Rated current16A

Surface protectionUntreated

RAL number (similar)3020

Impact resistanceIK04

Special power supplyAdditional safety supply (red)

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo

Legrand 077220 Mosaic antibakt SK rt socket

Price on request

€13.86

€0
