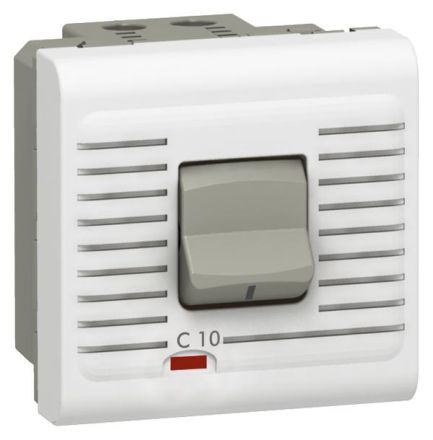

Legrand 077521 circuit breaker MOSAIC 1+N C10A 2mod ws

Legrand 077521 circuit breaker MOSAIC 1+N C10A 2mod ws

In stock

SKU: 243703

Price on request

€65.03

€0

Into a basketIn the basketGo

Overview

Mosaic LS 1+N C10A 2-module Color: Ultra white

Property	Value
Triggering characteristic:	C
Rated current:	10 A
Rated voltage:	230 V
Type of voltage:	AC
Frequency:	50 Hz
Width in pitch units:	45
Number of poles (total):	2
Installation depth:	40 mm
Protection class (IP):	IP21
Switching neutral conductor:	yes
Number of protected poles:	1
Ambient temperature during operation:	-5 to 40 °C
Connectable conductor cross-section, single-wire:	2.5 mm²

Characteristics

Insert Module TypeLight switch covers

Manufacturer

HAN077521

GTIN3245060775216

Connectable conductor cross-section solid2.5 mm²

Number of protected poles1

Trigger characteristicsC

Rated voltage230V

Rated current10A

Width in pitch units45

Installation depth40 mm

Frequency50Hz

Switching neutral conductorYes

Number of poles (total)2

IP protection)IP21

Voltage typeAC

Ambient temperature during operation-5 to 40 °C

Legrand 077521 circuit breaker MOSAIC 1+N C10A 2mod ws

Legrand 077521 circuit breaker MOSAIC 1+N C10A 2mod ws

Price on request

€65.03

€0

Into a basketIn the basketGo
