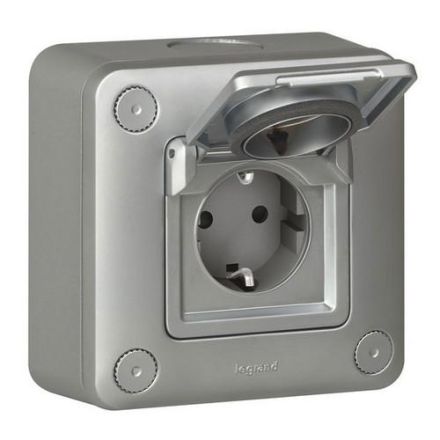

Legrand Green'up Soliroc safety socket, vandal-proof range made of die-cast metal (ZAMAK) for high pressure and impact resistance, flush-mounted installation, including mounting frame for strain relief for e.g. charging cables with ICCB and safety plug. For charging electric vehicles in accordance with IEC 61851-1 Mode 2. The reinforced Green'up safety socket enables a shortened charging time using a maximum charging current of up to 16 A. 1-phase charging 230 VAC. Protection class IP 55 - IK 10, dimensions (HxWxD): 110 x 110 x 47 mm, installation depth 26 mm. Each earthed socket must be protected in accordance with the regulations with a residual current device and a circuit breaker in accordance with local connection conditions.
