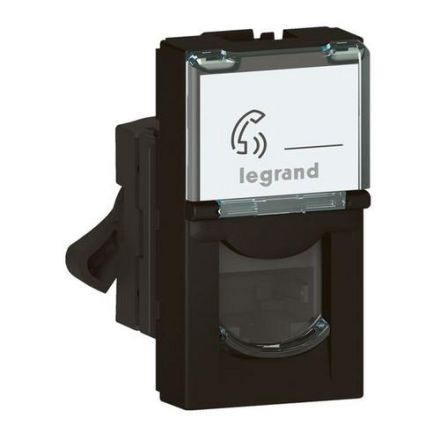

Legrand 079162L Mosaic 1xRJ45 Cat.6A STP 2-mod.sw insert

Legrand 079162L Mosaic 1xRJ45 Cat.6A STP 2-mod.sw insert

In stock

SKU: 935261

Price on request

€13.34

€0

Into a basketIn the basketGo

Overview

Mosaic insert 1x RJ45, category 6A, STP, 2-module, color: black

Property	Value
Category:	6
Surface-mounted:	no
Mounting type:	snap-in
Outlet direction:	straight
Sockets shielded:	no
Duct installation:	yes
Connector type:	RJ45 8(8)
Suitable for number of sockets/couplings:	1
Color coding:	yes
Connection type:	Insulation displacement terminal IDC
RAL number:	9017
Separate earth connection:	no
Floor tank/underfloor installation:	yes
With text field:	yes
Separate cable strain relief:	no
With sockets/couplings:	yes
Protection class (IP):	IP20
Color:	black
With dust protection:	yes
Mounting type shield connection:	without
Composition:	Base element with central cover plate
Device width:	22.5 mm
Device height:	45 mm
Device depth:	33.7 mm

Characteristics

Insert Module TypeLight switch covers

With text fieldYes

Category6

Connector typeRJ45 8(8)

HABMosaic 1xRJ45 Cat.6A STP 2-mod.sw

Manufacturer

HAN079162L

GTIN3414971637771

Connection typeInsulation displacement terminal IDC

Outlet directionStraight

Mounting typeSnap into place

Shielded socketsNo

Color

Suitable for number of sockets/couplings1

Device width22.5 mm

Device height45 mm

Device depth33.7 mm

With bushings/couplingsYes

With dust protectionYes

RAL number9017

IP protection)IP20

CompilationBase element with central cover plate
