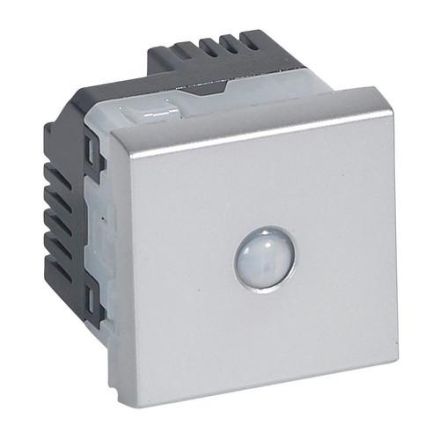

Legrand 079215 Mosaic 2-wire aluminum energy saving switch

Legrand 079215 Mosaic 2-wire aluminum energy saving switch

In stock

SKU: 935188

Price on request

€50.15

€0

Overview

Mosaic energy saving switch, 2-wire, function and installation like a changeover switch. But if the integrated IR detector does not register any movement for 1 minute, the light is automatically switched off. Color: aluminum

Property	Value
Depth:	32.1 mm
Width:	74.7 mm
Height:	74.7 mm
Design:	Motion detector
Color:	Aluminum
Nominal voltage:	230 V
RAL number (similar):	7040
Material:	Plastic
Mounting type:	Flush-mounted
Protection class (IP):	IP40
Max. switching capacity:	150 W
Type of voltage:	AC
Max. range to one side:	6 m
Min. duty cycle:	600 s
Max. Duty cycle:	10 min
Creep-under protection/rear field monitoring:	no
Temperature:	-5 to 45 °C
Adjustable response brightness:	no
Adjustable response sensitivity:	no
Max. range, frontal:	8 m
Max. Inrush current:	0.05 A
Optimal installation height:	1.2 m
Surface finish:	glossy
Surface:	other
Material quality:	Thermoplastic
Detection field diameter on floor:	6 m
Control current:	0.05 mA
Horizontal detection angle:	130 °
Frequency:	47 to 53 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced shutdown:	yes
Animal corridor:	no
Networkable:	no
Staircase monitoring:	yes
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	no
With signal unit:	no
Alarm function:	no
Teach function for response brightness:	no
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
With DALI interface:	no
Extension input:	yes
Connection type:	screw terminal
Antibacterial treatment:	no
Impact resistance:	IK02
Installation depth:	32.1 mm

Characteristics

Insert Module TypeLight switch covers

Bridging switchYes

With signal unitNo

Forced shutdownYes

Max. inrush current0.05 A

HAB079215 Mosaic 2-wire aluminum

Manufacturer

HAN079215

GTIN3414970594921

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableNo

Response brightness adjustableNo

Antibacterial treatmentNo

VersionMotion detector

Surface finishGlittering

Width74.7 mm

Installation depth32.1 mm

Detection field diameter on floor6m

Detection angle horizontal130°

Color

Remote controllableNo

Frequency47 to 53 Hz

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Height74.7 mm

Constant light controlNo

Max. duty cycle10mins

Max. range frontal8m

Max. range to one side6m

Max. switching capacity150W

Min. duty cycle600s

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage230V

SurfaceOther

Optimal mounting height1.2m

RAL number (similar)7040

Impact resistanceIK02

IP protection)IP40

Voltage typeAC

Teach function for response brightnessNo

Temperature-5 to 45 °C

Depth32.1 mm

Animal corridorNo

TransparentNo

Staircase monitoringYes

Creep protection/rear field monitoringNo

NetworkableNo

MaterialPlastic

Material qualityThermoplastic
