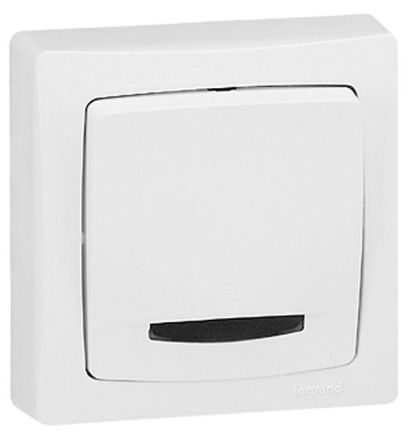

Legrand 086017 Universal on/off switch AP 1-POLE, (white)

Legrand 086017 Universal on/off switch AP 1-POLE, (white)

In stock

SKU: 243049

Price on request

€19.86

€0

Into a basketIn the basketGo

Overview

With N-terminal. Can be illuminated with glow unit. Switch - control Order No. 899 01/02/06, Switch - illuminated Order No. 899 01/02/07

Property	Value
Color:	white
Suitable for protection class (IP):	IP31
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Surface-mounted
Push button:	no
Composition:	Base element with complete housing
Mounting type:	Screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Number of modules (with modular design):	2
Lighting:	optional
Lighting type:	Glow lamp
Lighting function:	Control and orientation
Rated current:	10 A
Device depth:	31 mm
Device width:	72 mm
Device height:	72 mm
With mounting plate:	no
Text field/labeling area:	no
Min. depth of the device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

ColorWhite

Feedback contactNo

Number of actuating rockers1

Circuit typeChangeover switch

LightingOptional

Switching current for fluorescent lamps10 AX

Push buttonNo

Washing machine switchNo

Lighting functionControl and orientation

Manufacturer

HAN086017

GTIN3245060860172

Connection typeScrew terminal

Number of modules (for modular construction)2

Surface finishGlittering

Operating modeRocker/Button

Mounting typeScrew fastening

Rated current10A

Color

Suitable for protection class (IP)IP31

Device width72 mm

Device height72 mm

Device depth31 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateNo

Mounting typeSurface-mounted

Nominal voltage250V

SurfaceUntreated

RAL number (similar)9003

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationBase element with complete housing

Legrand 086017 Universal on/off switch AP 1-POLE, (white)

Legrand 086017 Universal on/off switch AP 1-POLE, (white)

Price on request

€19.86

€0

Into a basketIn the basketGo
