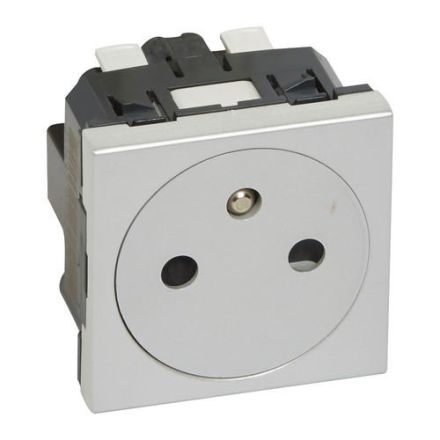

Legrand 278214L Mosaic F/B alu socket

In stock

SKU: 934788

Price on request

€6.84

€0

Overview

Mosaic socket F/B standard, plug-in terminals, increased contact protection, color: aluminum

Property	Value
RAL number (similar):	7040
Number of units:	1
Color:	Aluminum
Suitable for protection class (IP):	IP41
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Module carrier
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	Safety supply (green)
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-in fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	painted
Surface finish:	matt
Number of modules (with modular construction):	2
Device width:	45 mm
Device height:	45 mm
Device depth:	38 mm
Insulated installation:	no
With Loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	no
With orientation lighting:	no
Impact resistance:	IK04
Transparent:	no
Protective contact:	yes
Protective conductor contact round:	yes
Number of active contacts (round):	1
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no

Characteristics

Insert Module TypeLight switch covers

HAB278214L Mosaic F/B alu

Manufacturer

HAN278214L

GTIN3414971574892

LockableNo

Connection typePlug-in terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)2

Number of phases1

Number of active contacts (approx.)1

Surface finishFrosted

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP41

Device width45 mm

Device height45 mm

Device depth38 mm

Halogen freeYes

Insulated installationNo

With loop-through functionYes

With on/off switchNo

With micro fuseNo

With functional lightingNo

With hinged lidNo

With orientation lightingNo

With signal lampNo

With built-in USB power supplyNo

With increased contact protectionYes

Mounting typeModule carrier

Nominal voltage250V

Rated current16A

SurfacePainted

RAL number (similar)7040

Impact resistanceIK04

Protective contactYes

Protective conductor contact roundYes

Special power supplySafety supply (green)

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
