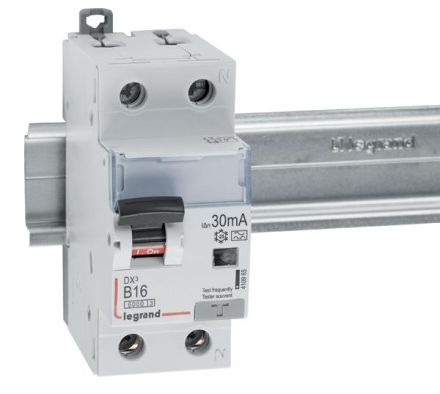

Legrand FI/LS circuit breaker DX3, 1-pole with switching neutral conductor, type A, for alternating and pulsating direct residual currents. According to EN 61009-1,0664-20, instantaneous rated residual current 30 mA. LS circuit breaker part: B characteristic. Rated voltage: 230 V~, rated frequency 50 Hz, rated current 16 A, rated switching capacity Icn 6 kA, surge current resistant up to 250 A, energy limitation class 3, tripping indicator: yellow = residual current or test button tripping, colorless = short circuit or manual tripping. Fastening to top hat rail EN 60715 using snap-on quick fasteners, clear information on the front of each device, clear red/green switch position indicator on the switch lever (lockable), with label window, with protection against misplacement for safe insertion of the conductor into the elevator terminal, attachment of auxiliary devices possible.
