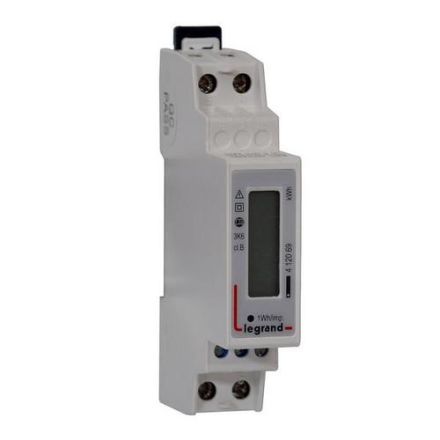

Legrand 412069 EMDX³ MID 45 A 1-ph. DA IA 1TE energy meter

In stock

SKU: 934823

Price on request

€104.20

€0

Overview

Legrand energy meter EMDX³, MID, 45 A, 1-phase, direct connection, 1-module, with pulse output, for measuring the active energy consumed in a 1-phase circuit.

Property	Value
Width in division units:	1
Calibrated:	yes
Pole type:	1-phase
Meter type:	electronic
Display type:	digital
Mounting type:	REG
Accuracy class:	B
Maximum current (Imax):	45 A
Nominal voltage (Un) NL:	161 to 297 V
Pulse rate:	1000 Imp/kWh (kvarh)
Protection class (IP):	IP20
Frequency:	47 to 63 Hz
Tariff version:	Single tariff
Energy type:	Active power
Nominal current (In):	5 A
Version:	Direct measurement
Measurement type load profile:	no
EDL40 signature:	no
With lock code:	no
Pulse type:	S0
Number of digits:	7
Suitable for:	Reference
Backstop:	yes
Approval:	Measuring Instruments Directive
Pulse output:	optical
Interface design:	without
