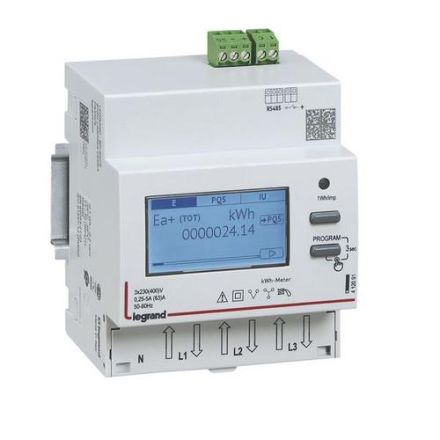

Legrand 412093 EMDX³ MID 63A 3-ph. DA RS485 4TE energy meter

In stock

SKU: 935392

Price on request

€399.68

€0

Overview

Legrand energy meter EMDX³, MID, 63 A, 3-phase, direct connection, 4-module, with RS485 interface, for measuring the active energy consumed in a 3-phase circuit.

Property	Value
Width in division units:	4
Calibrated:	yes
Pole type:	Three-wire/four-wire
Meter type:	electronic
Display type:	digital
Mounting type:	REG
Accuracy class:	B
Maximum current (Imax):	63 A
Rated voltage (Un) NL:	197 to 265 V
Protection class (IP):	IP54
Frequency:	49 to 61 Hz
Tariff version:	Two-tariff
Tariff control:	external
Energy type:	Active and reactive power
Nominal current (In):	5 A
Design:	Direct measurement
Measurement type load profile:	no
With lock code:	yes
Nominal voltage (Un) LL:	340 to 460 V
Number of digits:	9
Suitable for:	Purchase/Delivery
Backstop:	yes
Approval:	Measuring Instruments Directive
Pulse output:	without
Interface design:	RS-485
