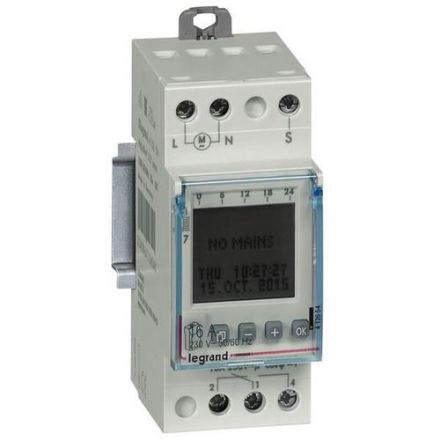

Legrand 412654 AstroRex D21 1-channel astro timer

In stock
SKU: 934652
€136.71
Into a basketIn the basketGo

Overview

Legrand AlphaRex³ D21 astro, astro timer with combination function, 1 channel, 56 switching programs, operating voltage 230 V 50/60 Hz, astro function (sunsets/sunrises) can be combined with weekly timer function. Control directly from the distribution, no separate light catcher required. Program creation directly on the device or with PC, AlphaSoft, PC adapter (412873) and data key (412872). Permanent ON/OFF, holiday program, random program, 1 hour test, PIN code lock, operating hours counter, background lighting, control input, automatic summer/winter time changeover, 5 year power reserve, accuracy +/- 0, 1 sec/day, shortest switching time: 1 sec, zero crossing switching. Switching output: 1 changeover contact.

Property Value
Width in division units: 2
Number of channels: 1
Protection class (IP): IP20
Supply voltage: 230 V
Power reserve in years: 5
Weekly program: yes
Annual program: yes
Mounting type: DIN rail
Type of supply voltage: AC
Frequency of supply voltage: 50 to 60 Hz
Accuracy per day: 0.1 s
Text guidance in the display: yes
24 h program: yes
60 min program: no
Automatic summer/winter time change: yes
Shortest switching time channel 1: 0.01666 min
Holiday program: yes
Pulse program: no
Cycle program: yes
Astro program: yes
External button input: yes
Random program: yes
Operating hours counter: yes
Mains synchronous: yes
Quartz controlled: yes
Radio controlled: no
Manual operation: yes
Number of memory locations: 56
Switching preselection: yes
Nominal switching current at 250 V AC: 16 A
Potential-free switching contact: yes
Width: 35.6 mm
Height: 83 mm
Depth: 60 mm
External programming: yes
Radio controlled (DCF77): no
GPS: no
With memory card: no

Characteristics

Insert Module TypeLight switch covers
Type of voltage of the supply voltageAC
Supply voltage230 V
Number of channels1
HAB412654 AstroRex D21 1 channel
ManufacturerLEGRAND
HAN412654
GTIN3245064126540
Width35.6 mm
Width in pitch units2
Height83 mm
Mounting typeDIN rail
IP protection)IP20
Depth60 mm
Supply voltage230V
