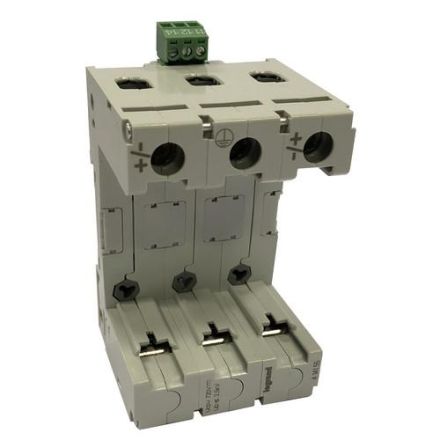

Legrand 414155 Type 2 Y-circuit+FM 600 VDC surge arrester

In stock

SKU: 935438

Price on request

€224.42

€0

Overview

Legrand surge arrester type 2 for PV systems, 600 VDC, according to EN 50539-11, Y-connection, Uoc 600V DC, discharge current Imax (8/20) 40 kA/pole. Maximum continuous voltage (Ucpv) 720 V DC. Surge protection of the DC side of a PV system. With plug-in protection module and status display: Green (SPD ready for use) Orange (replace plug-in protection module).

Property	Value
Protection level:	4 kV
Nominal discharge current (8/20):	40 kA
Highest continuous voltage DC:	720 V
Nominal voltage DC:	600 V
Mounting type:	DIN rail TH35
Size:	3 TE
Signaling on the device:	optical
With remote signaling contact:	no
Test class type 2:	yes
Max. conductor cross-section flexible (fine-stranded):	25 mm²
Max. Conductor cross-section rigid (single/multi-wire):	35 mm²
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type IT:	no
Network type TN:	no
Network type TN-C:	no
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Network type other:	yes
Number of conductors (without earth):	2
