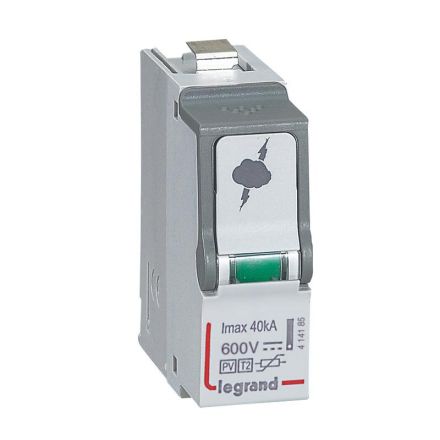

Legrand 414185 for surge arrester type 2 600 VDC protection module

Legrand 414185 for surge arrester type 2 600 VDC protection module

In stock

SKU: 934773

Price on request

€61.85

€0

Into a basketIn the basketGo

Overview

Legrand plug-in protection module for surge arrester type 2, Imax 40 kA/pole, Uoc 600 VDC, with handle and mechanical coding for correct insertion when replacing in the base

Property	Value
Protection level:	2.5 kV
Nominal discharge current (8/20):	20 kA
Maximum continuous voltage DC:	720 V
Nominal voltage DC:	600 V
Mounting type:	on Basic element
Size:	1 TE
Signaling on the device:	without
With remote signaling contact:	no
Test class type 2:	yes
Integrated backup fuse:	no
Protection class (IP):	IP20
Network type DC:	yes
Network type IT:	no
Network type TN:	no
Network type TN-C:	no
Network type TN-CS:	no
Network type TN-S:	no
Network type TT:	no
Network type other:	yes
Number of conductors (without earth):	1
Max. Discharge current (8/20):	40 kA

Characteristics

Insert Module TypeLight switch covers

Protection level2.5 kV

With remote signaling contactNo

Highest continuous voltage DC720 V

Number of conductors (excluding earth)1

Network form TTNo

Network type TN-SNo

Max. discharge current (8/20)40 kA

Test class type 2Yes

Network form TNNo

Network type TN-CNo

Nominal voltage DC600 V

Network type TN-C-SNo

Network type DCYes

Integrated backup fuseNo

Network type ITNo

HABFor surge arrester type 2 600 VDC

Manufacturer

HAN414185

GTIN3414970806918

Size1 TE

Mounting typeOn base element

Nominal discharge current (8/20)20kA

IP protection)IP20

Signaling on the deviceWithout
