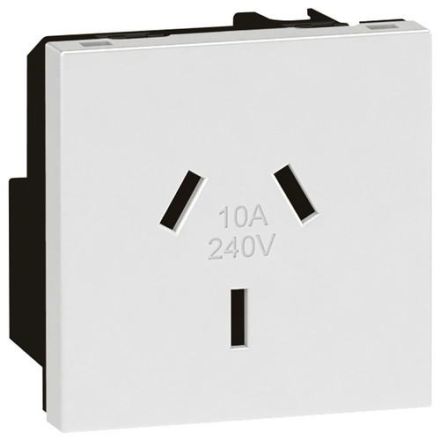

Legrand 572114 Mosaic Australian Standard uw socket

Legrand 572114 Mosaic Australian Standard uw socket

In stock

SKU: 934740

Price on request

€9.49

€0

Into a basketIn the basketGo

Overview

Mosaic socket Australian standard, (SK), 10 A, 2-module, color: ultra white

Feature	Value
Version:	Australia Standard AS/NZS 3112 (Type I)
RAL number (similar):	9003
Number of units:	1
Color:	white
Suitable for protection class (IP):	IP40
Rated voltage:	240 V
Nominal current:	10 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Module carrier
Text field/labeling area:	no
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	no
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Printing/marking:	other
Connection type:	screw terminal
With fine fuse:	no
Mounting type:	Snap-on fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface protection:	untreated
Surface finish:	glossy
For 'difficult conditions' according to VDE:	no
Number of modules (with modular construction):	2
Number of switchable sockets:	1
Device width:	45 mm
Device height:	45 mm
Device depth:	32 mm
Insulated installation:	no
With loop-through function:	yes
With on/off switch:	yes
With function lighting:	no
Impact resistance:	IK04
Transparent:	no
Number of active contacts (flat):	1
With indicator light:	no
Number of phases:	1
Antibacterial treatment:	no
Metallic color:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

Insert Module TypeLight switch covers

HAB572114 Mosaic Australian Standard uw

Minimal order10 pcs

Manufacturer

HAN572114

GTIN3245065721140

LockableNo

Connection typeScrew terminal

Antibacterial treatmentNo

Number of Units1

Number of modules (for modular construction)2

Number of phases1

Printing/markingOther

VersionAustralia Standard AS/NZS 3112 (Type I)

Surface finishGlittering

Ejection mechanismNo

Mounting typeSnap-on fastening

Color

Residual current protectionNo

Frequency50 to 60 Hz

Suitable for protection class (IP)IP40

Device width45 mm

Device height45 mm

Device depth32 mm

Halogen freeYes

IFTTT support availableNo

Insulated installationNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

With loop-through functionYes

With on/off switchYes

With micro fuseNo

With functional lightingNo

With hinged lidNo

With signal lampNo

With increased contact protectionYes

Mounting typeModule carrier

Nominal voltage240V

Rated current10A

Surface protectionUntreated

RAL number (similar)9003

Impact resistanceIK04

Special power supplyWithout special power supply

Text field/label areaNo

TransparentNo

Twisted central insertNo

MaterialPlastic

Material qualityThermoplastic

Overvoltage protectionNo
