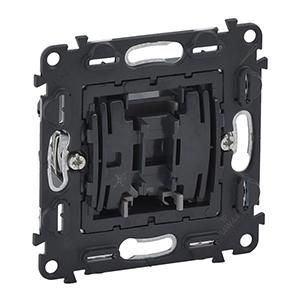

Legrand 752007 cross switch 10AX, (grey)

In stock

SKU: 243076

Price on request

€11.12

€0

Overview

suitable for spreading claws and screw fastening and are supplied with a transparent dust cover, for rigid and flexible conductors using plug-in (SL) or screw terminals (SK), professional packaging (cardboard box), cross switch (SK), screw terminals, illuminated function with LED order no. 665090, control function with LED order no. 665091 Note: For use with cross switch rocker

Property	Value
Color:	gray
Suitable for protection class (IP):	IP20
Circuit type:	Cross switch
Operating type:	Rocker/button
Number of actuating rockers:	1
Mounting type:	Flush-mounted
Push button:	no
Composition:	Control element
Mounting type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	9013
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	optional
Lighting type:	LED replaceable
Lighting function:	Control and orientation
Rated current:	10 A
Installation depth:	27.5 mm
Device depth:	37.9 mm
Device width:	74.7 mm
Device height:	74.7 mm
With mounting plate:	yes
Text field/labeling area:	no
Min. depth of the device box:	30 mm
