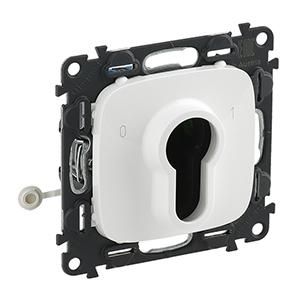

Legrand 755235 key switch Valena Allure 0-1 UW, (white)

Legrand 755235 key switch Valena Allure 0-1 UW, (white)

In stock

SKU: 243109

Price on request

€58.28

€0

Overview

Valena Allure key switch for DIN half cylinder 2-pole, 10 A - 230 V~ with screw terminals. For use with DIN half profile cylinder (not included). Required installation depth: 45 mm, not suitable for surface-mounted housing. Color: Ultra white

Property	Value
Color:	white
Suitable for protection class (IP):	IP20
Circuit type:	other
Operating type:	key
Number of rocker switches:	1
Mounting type:	flush-mounted
Push button:	no
Composition:	Base element with central cover plate
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	glossy
RAL number (similar):	9003
Nominal voltage:	250 V
Switching current for fluorescent lamps:	6 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	screw terminal
Lighting:	no
Lighting type:	other
Lighting function:	other
Rated current:	6 A
Installation depth:	21.6 mm
Device depth:	45.7 mm
Device width:	74.7 mm
Device height:	74.7 mm
With mounting plate:	yes
Text field/labeling area:	no
Min. Depth of the device box:	30 mm
