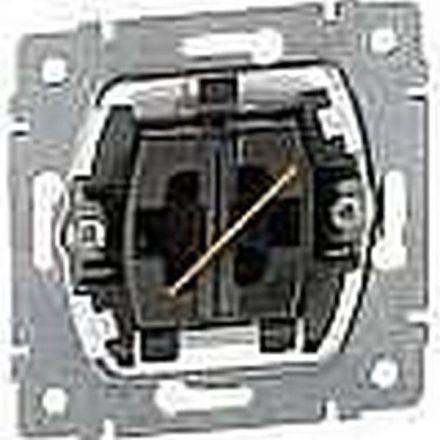

Legrand 775609 switch insert 1-pole 16A illuminated, (grey)

In stock

SKU: 243121

Price on request

€25.84

€0

Overview

Equipped with glow lamp order no. 7758 97, green glow

Property	Value
Color:	gray
Suitable for protection class (IP):	IP21
Circuit type:	Toggle switch
Operating type:	Rocker/button
Number of rocker switches:	1
Mounting type:	Flush-mounted
Push button:	no
Composition:	Control element
Fastening type:	Claw/screw fastening
Material:	Plastic
Material quality:	Thermoplastic
Halogen-free:	yes
Surface:	untreated
Surface finish:	matt
RAL number (similar):	7016
Nominal voltage:	250 V
Switching current for fluorescent lamps:	10 AX
Feedback contact:	no
Washing machine switch:	no
Connection type:	other
Lighting:	yes
Lighting type:	neon lamp
Lighting function:	Orientation
Rated current:	16 A
Installation depth:	21.5 mm
Device depth:	32.5 mm
Device width:	71 mm
Device height:	71 mm
With mounting plate:	yes
Text field/labeling area:	no
Min. Depth of the device box:	30 mm

Characteristics

Insert Module TypeLight switch covers

Feedback contactNo

Number of actuating rockers1

Circuit typeChangeover switch

LightingYes

Switching current for fluorescent lamps10 AX

Push buttonNo

Washing machine switchNo

Lighting functionOrientation

Manufacturer

HAN775609

GTIN3245067756096

Connection typeOther

Surface finishFrosted

Operating modeRocker/Button

Mounting typeClaw/screw fastening

Rated current16A

Installation depth21.5 mm

Color

Suitable for protection class (IP)IP21

Device width71 mm

Device height71 mm

Device depth32.5 mm

Halogen freeYes

Min. depth of the device box30 mm

With mounting plateYes

Mounting typeFlush-mounted

Nominal voltage250V

SurfaceUntreated

RAL number (similar)7016

Text field/label areaNo

MaterialPlastic

Material qualityThermoplastic

CompilationControl element
