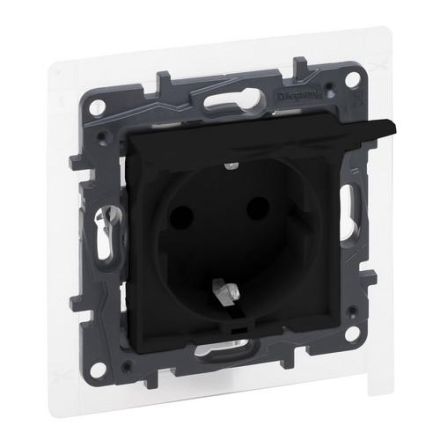

Legrand 863523 Niloe Step IP44 sw socket SCHUKO

In stock
SKU: 934884
€9.46
Into a basketIn the basketGo

Overview

The Niloe Step inserts are suitable for expansion claw and screw fastening and are supplied with a red dust cover. Can be used for connecting rigid and flexible conductors using plug-in (SL) or screw terminals (SK). To be completed with cover frames from Niloe Step. Niloe Step IP 44 protective contact socket 16A with hinged lid, including cover, with increased contact protection and screwless connection terminals, color: black

Property Value
RAL number (similar): 9017
Number of units: 1
Color: black
Suitable for protection class (IP): IP44
Nominal voltage: 250 V
Nominal current: 16 A
Lockable: no
With increased contact protection: no
With hinged lid: yes
Mounting type: Flush-mounted
Text field/labeling area: no
Frequency: 50 to 60 Hz
Ejection mechanism: no
Surge protection: no
Residual current protection: no
Special power supply: without special power supply
Twisted central insert: no
Connection type: Plug-in terminal
With fine fuse: no
Fastening type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: matt
Device width: 75.8 mm
Device height: 75.8 mm
Device depth: 48.7 mm
Insulated installation: no
With loop-through function: yes
With on/off switch: no
With built-in USB power supply: no
With function lighting: no
With orientation lighting: no
Impact resistance: IK04
Transparent: no
Protective contact: yes
Protective conductor contact round: no
Number of active contacts (round): 1
With signal lamp: no
Number of phases: 1
Antibacterial treatment: no

Characteristics

Insert Module TypeLight switch covers
HAB863523 Niloe Step IP44 sw
ManufacturerLEGRAND
HAN863523
GTIN3414972036252
LockableNo
Connection typePlug-in terminal
Antibacterial treatmentNo
Number of Units1
Number of phases1
Number of active contacts (approx.)1
Surface finishFrosted
Ejection mechanismNo
Mounting typeClaw/screw fastening
ColorBlack
Residual current protectionNo
Frequency50 to 60 Hz
Suitable for protection class (IP)IP44
Device width75.8 mm
Device height75.8 mm
Device depth48.7 mm
Insulated installationNo
With loop-through functionYes
With on/off switchNo
With micro fuseNo
With functional lightingNo
With hinged lidYes
With orientation lightingNo
With signal lampNo
With built-in USB power supplyNo
With increased contact protectionNo
Mounting typeFlush-mounted
Nominal voltage250V
Rated current16A
SurfaceUntreated
RAL number (similar)9017
Impact resistanceIK04
Protective contactYes
Protective conductor contact roundNo
Special power supplyWithout special power supply
Text field/label areaNo
TransparentNo
Twisted central insertNo
MaterialPlastic
Material qualityThermoplastic
Overvoltage protectionNo
