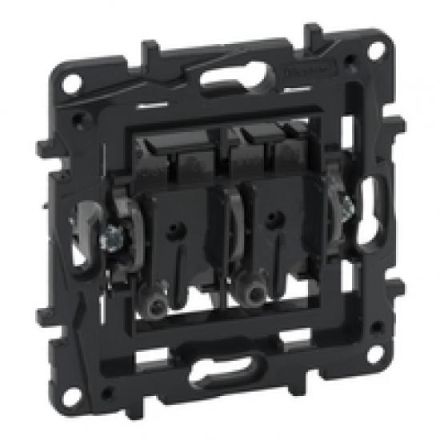

Legrand 864005 insert Niloe Step series switch 10Ax

In stock
SKU: 435435
€7.26
Into a basketIn the basketGo

Overview

The Niloe Step inserts are suitable for expansion claw and screw fastening and are supplied with a red dust cover. Can be used for connecting rigid and flexible conductors using plug-in (SL) or screw terminals (SK). To be completed with rockers and cover frames from Niloe Step. Series switch, 10 AX - 250 V~. Illuminated function with 2 LEDs Order no. 764526 or control function with 2 LEDs Order no. 764521

Property Value
Color: other
Suitable for protection class (IP): IP20
Circuit type: Off switch 1-pole
Operating type: Rocker/button
Number of rocker switches: 2
Mounting type: Flush-mounted
Push button: no
Composition: Base element
Fastening type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Surface: untreated
Surface finish: matt
Nominal voltage: 250 V
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Washing machine switch: no
Connection type: other
Lighting: optional
Lighting type: LED replaceable
Lighting function: Control and orientation
Rated current: 10 A
Installation depth: 31 mm
Device depth: 40.4 mm
Device width: 75.8 mm
Device height: 75.8 mm
With mounting plate: yes
Text field/labeling area: no
Min. depth of device box: 30 mm

Characteristics

Insert Module TypeLight switch covers
Feedback contactNo
Number of actuating rockers2
Circuit type1-pole switch
LightingOptional
Switching current for fluorescent lamps10 AX
Push buttonNo
Washing machine switchNo
Lighting functionControl and orientation
ManufacturerLEGRAND
HAN864005
GTIN3414971122635
Connection typeOther
Surface finishFrosted
Operating modeRocker/Button
Mounting typeClaw/screw fastening
Rated current10A
Installation depth31 mm
ColorOther
Suitable for protection class (IP)IP20
Device width75.8 mm
Device height75.8 mm
Device depth40.4 mm
Halogen freeYes
Min. depth of the device box30 mm
With mounting plateYes
Mounting typeFlush-mounted
Nominal voltage250V
SurfaceUntreated
Text field/label areaNo
MaterialPlastic
Material qualityThermoplastic
CompilationBasic element
