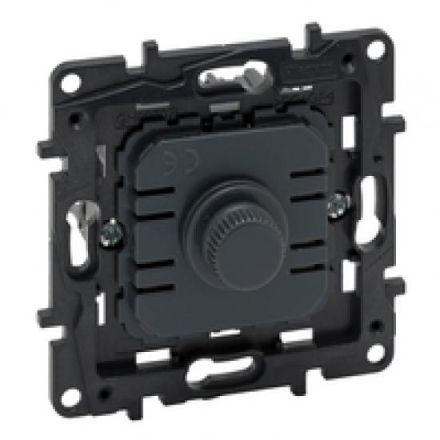

Legrand 864017 insert Niloe Step universal rotary dim 300W

In stock
SKU: 435448
€35.41
Into a basketIn the basketGo

Overview

The Niloe Step inserts are suitable for expansion claw and screw fastening and are supplied with a red dust cover. Can be used for connecting rigid and flexible conductors using plug-in (SL) or screw terminals (SK). To be completed with cover frames from Niloe Step. Universal rotary dimmer 300 W without neutral conductor, leading/trailing edge, 5 - 300 W, 2-wire connection (without N-wire) with screw terminals - Extension operation (switching and dimming) using a conventional unlit normally open button (max. cable length 50 m) - Soft start/soft stop to protect the bulbs. Suitable for the following dimmable bulbs: - Incandescent and HV halogen lamps: 5 - 300 W - LV halogen lamps with electronic or conventional transformer: 5 - 300 VA - Dimmable LED or compact fluorescent lamps: 5 - 75 W (max. 10 lamps)

Feature Value
Device height: 75.8 mm
Device width: 75.8 mm
Device depth: 51.85 mm
Connection type: Screw terminal
Wire cross section: 2.5 mm²
Mounting type: Flush-mounted
Nominal voltage: 100 to 240 V
Suitable for protection class (IP): IP40
Operating method: Rotary/push button
Halogen-free: yes
Composition: Base element with central cover plate
Load type: universal
Series dimmer: no
Extension input: yes
Light value memory: yes
Can be used with button: yes
Can be used with motion detector: no
Can be used with presence detector: no
Can be used with timer: no
Can be used with radio button: no
Can be used with IR button: no
Mounting type: Claw/screw fastening
Material: Plastic
Material quality: Thermoplastic
Surface: untreated
Surface finish: matt
Frequency: 50 to 60 Hz
Control voltage: 90 to 254 V
Transparent: no
App control via Bluetooth: no
Impact resistance: IK02

Characteristics

Insert Module TypeLight switch covers
Core cross-section2.5 mm²
ManufacturerLEGRAND
HAN864017
GTIN3414971122963
Connection typeScrew terminal
Surface finishFrosted
Operating modeRotary/push button
Mounting typeClaw/screw fastening
Frequency50 to 60 Hz
Suitable for protection class (IP)IP40
Device width75.8 mm
Device height75.8 mm
Device depth51.85 mm
Halogen freeYes
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage100 to 240 V
SurfaceUntreated
Impact resistanceIK02
TransparentNo
MaterialPlastic
Material qualityThermoplastic
CompilationBase element with central cover plate
