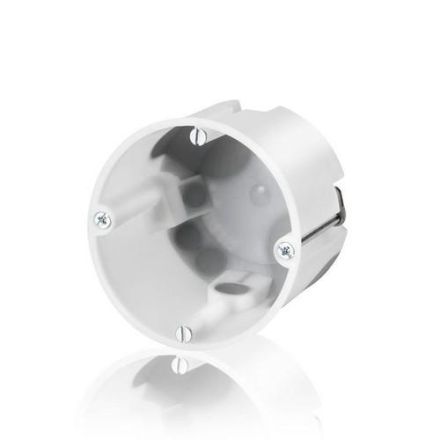

Legrand A01029 hollow wall windproof D:68mm T:61mm white device box

In stock
SKU: 935211
€1.85
Into a basketIn the basketGo

Overview

Hollow-wall device junction box, windproof, halogen-free, D=68mm, t=61mm,The halogen-free hollow-wall boxes with a push-through membrane are guaranteed to be windproof and quick to install. Cables or pipes can be pushed through the membranes without additional tools, which shortens your usual working time. Thanks to the new development of our guaranteed windproof halogen-free hollow-wall boxes with a push-through membrane, you only need two boxes in your range instead of the previous three, thus saving valuable storage space. All boxes now have 2x M25 pipe entries and a variety of other entry options with optimized cable retention. Of course, all models in this series are certified. Guaranteed to be windproof. Increases energy efficiency in buildings sustainably. Creates more comfort by avoiding drafts. Easy to install. Easy to handle without additional tools. Milling hole d=68 mm. Halogen-free. 4 cable entries: (2x) M25, (2x) 3x1.5mm², (2x) 3x2.5mm² - 5x1.5mm². Incl. windproof connecting piece E105HF. E3700HF also has 2 additional cable entries for 7 x 1.5mm² or 5 x 2.5mm². Material: PP, TPE, recyclable. Color: white

Value < td>Plastic
Property
With screws: yes
Max. Conductor cross section: 2.5 mm²
Depth: 61 mm
Material:
Color: white
Halogen-free: yes
Protection rating (IP): IP30
Shape: round
Diameter: 68 mm
Mounting type: Hollow wall
Number of entries: 8
Design: Single
Design: Device junction box/box
With nail tabs: no
Windproof: yes
Introduction from the rear: no
Can be coupled: yes
Housing feedthrough through sealing membrane: yes
Functional integrity: without
For number of device inserts: 1
Inner depth: 61 mm
Surface: untreated
Fastening of the devices: screws
For pipe diameter: 25 mm
Equipment: without
Light hook attachment: no
Socket: Tunnel socket
With shielding: no
Housing feedthrough through knockout opening: no
With rotating ring: no
Special application: without
Housing feedthrough through pipe socket: no
Housing feedthrough through stepped membrane: no
Cover design: without

Characteristics

Insert Module TypeLight switch covers
ColorWhite
HABHollow wall windproof D:68mm T:61mm white
ManufacturerLEGRAND
HANA01029
GTIN4010957010294
VersionSingles
Cover designWithout
DesignDevice junction box
Diameter68 mm
ColorWhite
ShapeAround
Functional preservationWithout
Halogen freeYes
Internal depth61 mm
Mounting typeCavity wall
SurfaceUntreated
IP protection)IP30
Depth61 mm
MaterialPlastic
