Catalog

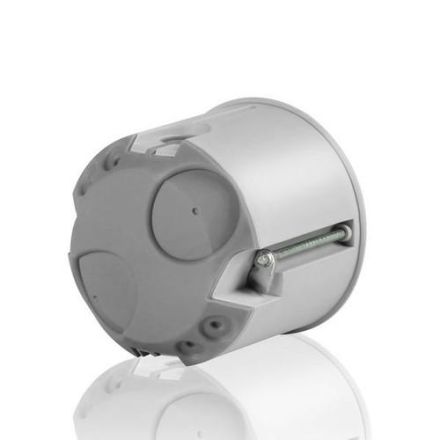

Legrand A01035 sound insulation windproof D:68mm T:58mm gr cavity wall box

In stock
SKU: 934900
€12.18
Into a basketIn the basketGo

Overview

Hollow wall soundproofing box, windproof, D=68mm, t=58mm,The installation of conventional hollow wall boxes in soundproofing walls significantly weakens the sound insulation! With our innovative soundproofing boxes, the structural requirements of the soundproofing walls are maintained despite the installation opening, the sound is completely absorbed and thus guarantees peace and quiet in everyday life. The installation of our soundproofing boxes is as uncomplicated, quick and easy as installing a conventional hollow wall box in a standard opening of 68 mm diameter. The soundproofing function of the wall is fully retained. Subsequent installation possible. 2K membrane introduction. Installation up to 5-way combination possible. Opposite installation possible from 120mm wall thickness. Milling hole D=68mm. windproof. Ideal for renovations and refurbishments in residential buildings. Incl. 5 connecting pieces type E105 per unit. Material: PP, TPE, recyclable. Color: gray

Property Value
With screws: yes
Max. Conductor cross-section: 2.5 mm²
Depth: 60.5 mm
Material: Plastic
Color: gray
Sealable: no
Halogen-free: no
Protection class (IP): IP30
Shape: round
Diameter: 68 mm
Mounting type: Hollow wall
Number of entries: 6
Design: Single
Design: Device junction box/box
With nail tabs: no
Windproof: yes
Suitable for cable diameters: 1 to 9 mm
Entry from the rear: no
Can be coupled: yes
Housing feedthrough through sealing membrane: yes
Functional integrity: without
For number of device inserts: 1
Inner depth: 58 mm
Surface: untreated
Fastening of devices: screws
For pipe diameter: 25 mm
Equipment: without
Lamp hook attachment: no
Socket: Tunnel socket
With shielding: no
Housing feed-through through knockout opening: no
With rotating ring: no
Special application: Sound insulation
Housing feed-through through pipe socket: no
Housing feedthrough through stepped membrane: no
Cover design: without
Transparent cover: no

Characteristics

Insert Module TypeLight switch covers
Suitable for cable diameter1 to 9 mm
HABSoundproof windproof D:68mm T:58mm gr
ManufacturerLEGRAND
HANA01035
GTIN4010957010355
VersionSingles
Cover designWithout
DesignDevice junction box
Diameter68 mm
ColorGray
ShapeAround
Functional preservationWithout
Halogen freeNo
Internal depth58 mm
Mounting typeCavity wall
SurfaceUntreated
IP protection)IP30
Depth60.5 mm
MaterialPlastic
