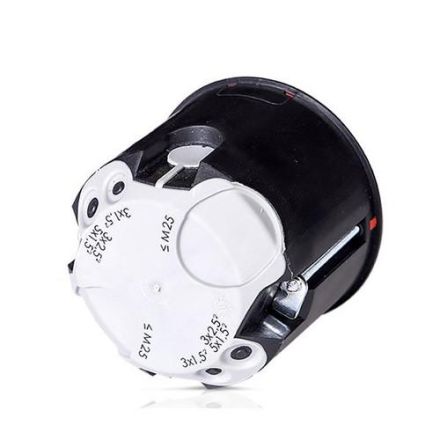

Legrand A01038 fire protection D:68mm T:62mm cavity wall box

In stock

SKU: 934902

Price on request

€15.90

€0

Overview

Cavity wall fire protection box D = 68 mm, t = 62 mm, with cable and pipe entries,Highest fire protection requirements, With fire resistance class EI120, With fire resistance class EI30 to EI60 without insulating wool, Opposite installation possible, Direct protection in the event of smoke, Maintains the soundproofing function of the wall, Guaranteed windproof, Sealing on mounting screws, 2K technology, Efficient processing and handling, Tool-free cable and pipe entry, Pipe and cable labeling applied on both sides, Standard milling hole D = 68 mm, Subsequent installation possible

Property	Value
With screws:	yes
Max. Conductor cross-section:	2.5 mm²
Depth:	62 mm
Material:	Plastic
Color:	black
Halogen-free:	yes
Protection class (IP):	IP30
Shape:	round
Diameter:	68 mm
Mounting type:	Hollow wall
Number of entries:	6
Design:	Single
Design:	Device junction box/box
With nail tabs:	no
Windproof:	yes
Entry from behind:	no
Can be coupled:	yes
Housing feed-through through sealing membrane:	yes
Functional integrity:	without
For number of device inserts:	1
Inner depth:	62 mm
Surface:	untreated
Fastening of devices:	screws
For pipe diameter:	25 mm
Equipment:	without
Light hook fastening:	no
Socket:	Tunnel socket
With shielding:	no
Housing feed-through through break-out opening:	no
With rotating ring:	no
Special application:	Fire protection
Housing feed-through through pipe socket:	no
Housing feed-through through stepped membrane:	no
Cover design:	without
