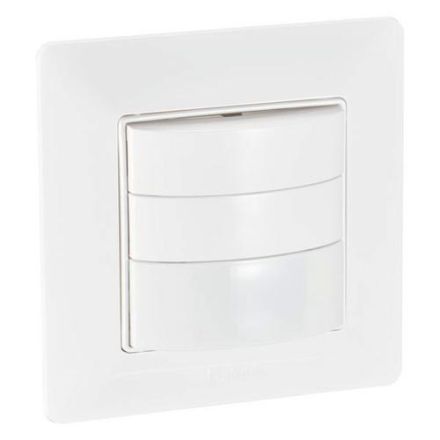

Legrand A75213 VALENA 3-wire 180° UW motion detector

Legrand A75213 VALENA 3-wire 180° UW motion detector

In stock

SKU: 934723

Price on request

€101.72

€0

Overview

High-precision 180° infrared presence switch with a range of 5-20 m. 180° detection angle. Quick and easy 3-wire installation. Attractive design. Integrated button for manual override and with extension input. The new 180° 3-wire motion detector with manual operation impresses with its design, intelligent technology, quick installation and the large detection angle of the sensor. And is the optimal solution if motion detectors are present or planned in new or existing buildings with 3-wire cabling. The function (ON / OFF / automatic operation) can also be switched using the manual operation. Additional functions can also be activated using microswitches. Color: Ultra white

Property	Value
Design:	Presence detector
Nominal voltage:	240 V
Material:	Plastic
Mounting type:	Flush-mounted
Response brightness:	10 to 1000 lx
Protection class (IP):	IP20
Max. Switching capacity:	2000 W
Voltage type:	AC
Max. range to one side:	20 m
Min. duty cycle:	30 s
Max. Duty cycle:	30 min
Creep under protection/rear field monitoring:	yes
Temperature:	-20 to 55 °C
Adjustable response brightness:	yes
Adjustable response sensitivity:	yes
Max. range, frontal:	20 m
Max. Inrush current:	10 A
Sensor type:	passive infrared
Optimal mounting height:	1.2 m
Surface finish:	matt
Surface:	other
Material quality:	thermoplastic
Detection field diameter on floor:	4 m
Number of switching zones:	96
Switch-off delay:	1800 s
Horizontal detection angle:	180 °
Frequency:	50 to 60 Hz
Halogen-free:	yes
Constant light control:	no
HVAC control:	no
Forced switch-off:	yes
Animal corridor:	no
Networkable:	yes
Staircase monitoring:	no
Bypass switch:	yes
Suitable for wireless transmission:	no
Remote controllable:	yes
With signal unit:	yes
Alarm function:	no
Teach function for response brightness:	yes
Dimming function with dimming insert:	no
Transparent:	no
With remote control:	no
Suitable for C load:	yes
With DALI interface:	no
Extension input:	yes
Connection type:	Screw terminal
Antibacterial treatment:	no

Characteristics

Insert Module TypeLight switch covers

Bridging switchYes

With signal unitYes

Number of switching zones96

Response brightness10 to 1000 lx

Forced shutdownYes

Max. inrush current10 A

HABA75213 VALENA 3-wire 180° UW

Manufacturer

HANA75213

GTIN4010957752132

Dimming function with dimming insertNo

Alarm functionNo

Connection typeScrew terminal

Response sensitivity adjustableYes

Response brightness adjustableYes

Antibacterial treatmentNo

VersionPresence detector

Surface finishFrosted

Detection field diameter on floor4m

Detection angle horizontal180°

Remote controllableYes

Frequency50 to 60 Hz

Suitable for C-loadYes

Suitable for wireless transmissionNo

HVAC controlNo

Halogen freeYes

Constant light controlNo

Max. duty cycle30 min

Max. range frontal20m

Max. range to one side20m

Max. switching capacity2000W

Min. duty cycle30s

With DALI interfaceNo

With remoteNo

Mounting typeFlush-mounted

Extension inputYes

Nominal voltage240V

SurfaceOther

Optimal mounting height1.2m

IP protection)IP20

Sensor typePassive infrared

Voltage typeAC

Teach function for response brightnessYes

Temperature-20 to 55 °C

Animal corridorNo

TransparentNo

Staircase monitoringNo

Creep protection/rear field monitoringYes

NetworkableYes

MaterialPlastic

Material qualityThermoplastic
