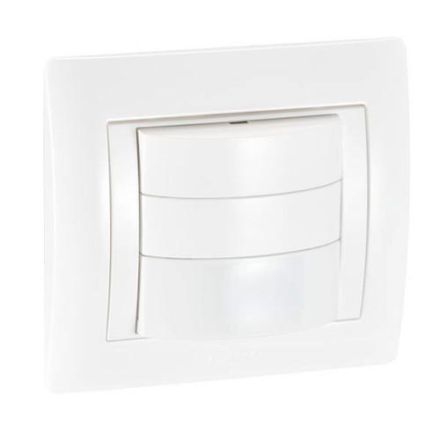

Legrand A77102 GALEA 2-wire 180° UW motion detector

In stock
SKU: 935113
€130.93
Into a basketIn the basketGo

Overview

180° infrared presence switch in patented 2-wire design - perfect for LED lamps. Integrated SuperCab energy storage for flawless functionality even in the event of a power failure. 0 watts standby power. Absolutely flicker-free light for every lamp. Integrated button for manual override. 5-20 m range. Avoid flickering when using energy-saving lamps with the new motion detectors. Legrand now offers a solution to this problem with the 180° 2-wire motion detector with innovative load technology and manual operation. The SuperCap and the galvanic isolation of the line by a relay prevent leakage current and every lamp can be switched without flickering. The function (ON / OFF / automatic operation) can also be switched with the manual operation. Additional functions can be activated using microswitches. Color: Ultra white

Property Value
Version: Presence detector
Color: white
Nominal voltage: 240 V
Material: Plastic
Mounting type: Flush-mounted
Response brightness: 10 to 1000 lx
Protection class (IP): IP20
Max. switching capacity: 2000 W
Type of voltage: AC
Max. range to one side: 20 m
Min. duty cycle: 30 s
Max. Duty cycle: 30 min
Creep under protection/rear field monitoring: yes
Temperature: -20 to 55 °C
Adjustable response brightness: yes
Adjustable response sensitivity: yes
Max. range, frontal: 20 m
Max. Inrush current: 10 A
Sensor type: passive infrared
Optimal mounting height: 1.2 m
Surface finish: matt
Surface: other
Material quality: thermoplastic
Detection field diameter on floor: 4 m
Number of switching zones: 96
Switch-off delay: 1800 s
Horizontal detection angle: 180 °
Frequency: 50 to 60 Hz
Halogen-free: yes
Constant light control: no
HVAC control: no
Forced switch-off: yes
Animal corridor: no
Networkable: yes
Staircase monitoring: no
Bypass switch: yes
Suitable for wireless transmission: no
Remote controllable: no
With signal unit: yes
Alarm function: no
Teach function for response brightness: yes
Dimming function with dimming insert: no
Transparent: no
With remote control: no
Suitable for C load: yes
With DALI interface: no
Extension input: yes
Connection type: Screw terminal
Antibacterial treatment: no

Characteristics

Insert Module TypeLight switch covers
Bridging switchYes
With signal unitYes
Number of switching zones96
Response brightness10 to 1000 lx
Forced shutdownYes
Max. inrush current10 A
HABA77102 GALEA 2-wire 180° UW
ManufacturerLEGRAND
HANA77102
GTIN4010957771027
Dimming function with dimming insertNo
Alarm functionNo
Connection typeScrew terminal
Response sensitivity adjustableYes
Response brightness adjustableYes
Antibacterial treatmentNo
VersionPresence detector
Surface finishFrosted
Detection field diameter on floor4m
Detection angle horizontal180°
ColorWhite
Remote controllableNo
Frequency50 to 60 Hz
Suitable for C-loadYes
Suitable for wireless transmissionNo
HVAC controlNo
Halogen freeYes
Constant light controlNo
Max. duty cycle30 min
Max. range frontal20m
Max. range to one side20m
Max. switching capacity2000W
Min. duty cycle30s
With DALI interfaceNo
With remoteNo
Mounting typeFlush-mounted
Extension inputYes
Nominal voltage240V
SurfaceOther
Optimal mounting height1.2m
IP protection)IP20
Sensor typePassive infrared
Voltage typeAC
Teach function for response brightnessYes
Temperature-20 to 55 °C
Animal corridorNo
TransparentNo
Staircase monitoringNo
Creep protection/rear field monitoringYes
NetworkableYes
MaterialPlastic
Material qualityThermoplastic
