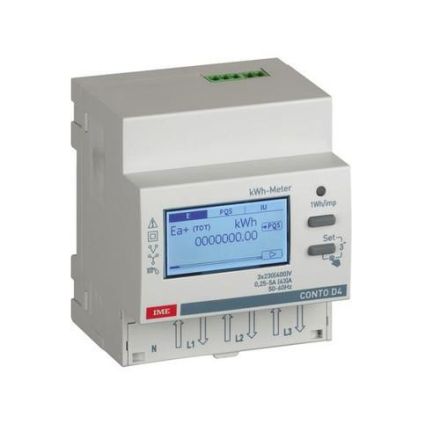

Legrand CE4DF30PMID Conto D4-Pd 63A 3-ph. Direct connection 4TE energy meter

In stock

SKU: 934984

Price on request

€236.30

€0

Overview

Energy meter Conto D4 63A, MID validation, 400V, 50-60Hz, self-powered, pulse input, pulse output

Property	Value
Width in division units:	4
Calibrated:	yes
Pole type:	Three-wire/four-wire
Meter type:	electronic
Display type:	digital
Mounting type:	REG
Accuracy class:	B
Maximum current (Imax):	63 A
Rated voltage (Un) NL:	197 to 265 V
Pulse rate:	0.001 to 10 Imp/kWh (kvarh)
Protection class (IP):	IP54
Frequency:	49 to 61 Hz
Tariff version:	Two tariff
Tariff control:	external
Energy type:	Active and reactive power
Nominal current (In):	5 A
Version:	Direct measurement
Measurement type load profile:	no
With lock code:	yes
Pulse type:	S0
Nominal voltage (Un) LL:	340 to 460 V
Number of digits:	9
Suitable for:	Purchase/delivery
Backstop:	yes
Approval:	Measuring Instruments Directive
Pulse output:	optical
Interface design:	without
