Megaman Dino2 1.2m 22.5W 2350lm 840 LED waterproof light

Megaman Dino2 1.2m 22.5W 2350lm 840 LED waterproof light

In stock

SKU: 525212

Price on request

€74.12

€0

Overview

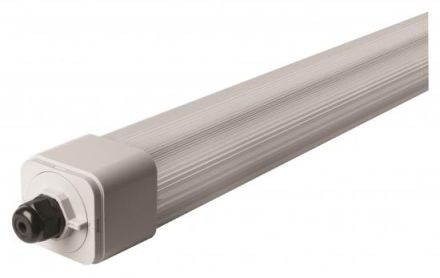

LED damp-proof light for use in workshops, parking garages, warehouses, canopy lighting, etc. The DINO 2 is protected against dust and water jets thanks to its high protection class (IP66) and is extremely impact-resistant and durable thanks to IK08. Its wide beam area (approx. 330°) also enables the illumination of ceilings or walls. In contrast to conventional damp-proof lights, the DINO 2 has optimal dust and water protection. It is available in various designs.

Property	Value
System power:	22.5 W
Luminous flux:	2350 lm
Length:	1272 mm
Width:	62 mm
Height/depth:	56 mm
Protection type (IP):	IP66
Protection class:	II
Nominal voltage:	220 to 240 V
Housing color:	other
Material of Housing:	Plastic
Color temperature:	4000 K
Impact resistance:	IK08
Color rendering index CRI:	80-89
Suitable for ceiling mounting:	yes
Voltage type:	AC
With motion detector:	no
Beam angle:	extremely wide beam>80°
With light source:	yes
Light source:	LED not replaceable
Connection type:	Plug-in terminal
With operating device:	yes
Cover material:	Plastic opal
Light distributor:	other
Without dimming function:	yes
Light emission:	direct
Light distribution:	symmetrical
With light sensor:	no
Operating device:	not required
Suitable for Recessed installation:	no
Light color:	white
Suitable for computer workstations in accordance with EN 12464-1:	no
Suitable for light strip configuration:	no
Suitable for pendant suspension:	yes
Suitable for surface mounting:	yes
Design of the grid:	without
DMX dimming:	no
DSI dimming:	no
LineSwitch dimming:	no
Potentiometer dimming (device-integrated):	no
Dimming 0-10 V:	no
Dimming 1-10 V:	no
Dimming manufacturer-specific:	no
Dimming DALI:	no
Dimming mains voltage modulation:	no
Dimming trailing edge:	no
Dimming leading edge:	no
Dimming programmable:	no
Dimming RF:	no
Dimming Sine Wave Reduction:	no
Dimming Touch and Dim:	no
Dimming Zigbee:	no
Dimming with push button:	no
Luminaire luminous efficacy:	104 lm/W
Power factor:	0.9
Type of wiring:	with through wiring
Number of poles:	2
Replaceable operating device:	no
Dimming DALI-2:	no
Color consistency (McAdam ellipse):	SDCM6
Integrated emergency power supply:	no
Constant luminous flux control:	no
Color temperature adjustable:	no
Luminous flux adjustable:	no
Beam angle adjustable:	no
Operation via Bluetooth:	no
Compatible with Apple HomeKit:	no
Compatible with Google Assistant:	no
Compatible with Amazon Alexa:	no
IFTTT support available:	no

Characteristics

HABDino2 1.2m 22.5W 2350lm 840

Manufacturer

HANMM77301

GTIN4020856773015

Connection typePlug-in terminal

Type of wiringWith through wiring

Execution of the gridWithout

Beam angle adjustableNo

Replaceable operating deviceNo

Operation via BluetoothNo

Operating deviceNot required

Suitable for computer workstations according to EN 12464-1No

Width62 mm

Dimming 0-10 VNo

Dimming 1-10 VNo

Dimming DALINo

Dimming DALI-2No

Dimming DMXNo

Dimming DSINo

Dimming LineSwitchNo

Dimming mains voltage modulationNo

Dimming trailing edgeNo

Dimming phase controlNo

Dimming potentiometer (integrated)No

Dimming RFNo

Dimming Sine Wave ReductionNo

Dimming Touch and DimNo

Dimming ZigbeeNo

Dimming manufacturer-specificNo

Dimming with push buttonNo

Dimming programmableNo

Color consistency (McAdam ellipse)SDCM6

Color temperature4000K

Color temperature adjustableNo

Color rendering index CRI80-89

Suitable for surface mountingYes

Suitable for ceiling mountingYes

Suitable for flush mountingNo

Suitable for light strip configurationNo

Suitable for pendulum suspensionYes

Housing colorOther

Height/Depth56 mm

IFTTT support availableNo

Compatible with Amazon AlexaNo

Compatible with Apple HomeKitNo

Compatible with Google AssistantNo

Constant luminous flux controlNo

Power factor0.9

Luminaire luminous efficacy104lm/W

LampsLED not replaceable

Light emissionDirect

Light colorWhite

Luminous flux2350lm

Luminous flux adjustableNo

Light distributorOther

Light distributionSymmetrical

Length1272 mm

With operating deviceYes

With motion detectorNo

With light sourceYes

With light sensorNo

Nominal voltage220 to 240 V

Emergency power supply integratedNo

Without dimming functionYes

Number of poles2

Impact resistanceIK08

IP protection)IP66

Protection classII

Voltage typeAC

System performance22.5W

Cover materialPlastic opal

Housing materialPlastic
