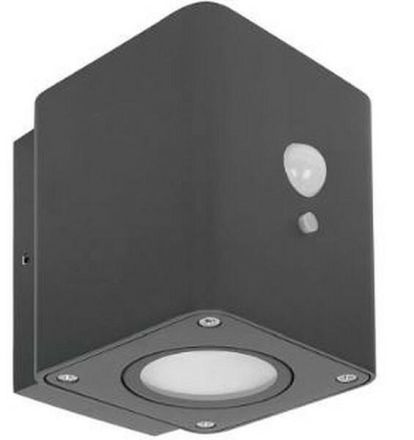

HABMT PRO LOKY corner PIR Sol 1W 110lm 3K IP54
HANMT70018
GTIN4020856700189
Connection typeOther
Type of wiringDiploma
Beam angleExtremely wide beam >80°
Rated lifetime L70/B50 at 25 °C25000 hours
Rated luminous flux according to IEC 62722-2-1130lm
Rated ambient temperature according to IEC62722-2-1-20 - 45 °C
Operating deviceNot required
Width88 mm
Dimming potentiometer (integrated)Yes
Color consistency (McAdam ellipse)SDCM6
Color temperature3000K
Color rendering index CRI80-89
Suitable for podium/floor mountingYes
Housing colorOther
Weight0,75
Weight unit kg
Glow wire test according to IEC 60695-2-11Without
Height/Depth105 mm
Short descriptionMEGATRON PRO LOKY Square PIR Solar Wall Light 1W-85lm/3000K IP65
Luminaire luminous efficacy130lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux3000lm
Luminous flux adjustableStages
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Length105 mm
Max. system performance1W
With operating deviceYes
With motion detectorYes
With light sourceYes
With light sensorYes
Nominal voltage3.7V
Rated current2200mA
Emergency power supply integratedYes
SurfacePowder coated
Without dimming functionYes
ReflectorWithout
IP protection)IP54
Protection classIII
Voltage typeDC
AdjustabilityNot adjustable
Cover materialPlastic opal
Housing materialAluminum
