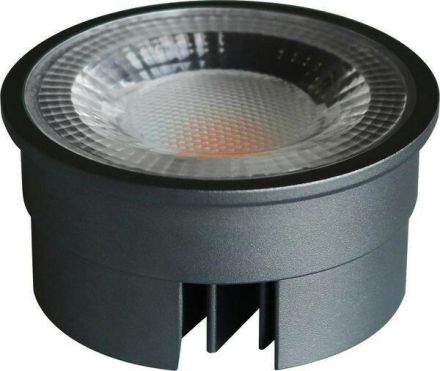

Megaman MT76764 MEGA PRO KOIN DTW 38° Ra95 7.5W 600lm module set

In stock
SKU: 1064132
€22.53
Into a basketIn the basketGo

Overview

LED module KOIN 260 cd. Bright, dimmable KOIN LED module (Ø 50mm) with a lifespan of 50,000 hours, replaces PAR16/MR16 reflectors. Beam angle 100°, light color warm white (3000K) CRI 97. Supplied with a super-compact LED driver (DC 27-42V, 180mA) that fits through 68mm ceiling cutouts and in narrow spaces. 5-year guarantee.

PropertyValue
Color consistency (McAdam ellipse):SDCM6
Protection class (IP):IP20
Voltage type:AC
Connection type:Cable
Weight:0.11
Weight unit:KG
Color:white
Height:25 mm
Shape:round
Color temperature:3000 K
Diameter:50 mm
Luminous intensity:1100 cd
Operating voltage:230 V
Light color according to EN 12464-1:warm white
Number of LEDs:1
Average nominal service life:50000 h
Suitable for general lighting:yes
Lamp voltage:27 - 42 V
Suitable for constant current:yes
Operating current:180 mA
External operating device required:yes
Lamp power:7.6 W
Luminous flux:600 lm
Beam angle:38 °
Specific luminous efficacy:80 lm/W
Energy spectrum:A - G
Short description:MEGATRON PRO KOIN DTW module set 38° Ra95 7.5W-520lm/918-930 height 25mm // incl. driver

Characteristics

Suitable for constant currentYes
Operating voltage230 V
HABMEGA PRO KOIN DTW 38° Ra95 7,5W 600lm
ManufacturerMegaman
HANMT76764
GTIN4020856767649
Connection typeCable
Beam angle38°
Diameter50 mm
Energy spectrumA - G
ColorWhite
Color consistency (McAdam ellipse)SDCM6
Color temperature3000K
ShapeAround
Weight0,11
Weight unit kg
Height25 mm
Short descriptionMEGATRON PRO KOIN DTW module set 38° Ra95 7.5W-520lm/918-930 height 25 mm // incl. driver
Lamp power7.6W
Lamp voltage27 - 42V
Light colour according to EN 12464-1Warm white
Luminous flux600lm
Light intensity1100 cd
Average nominal life50000 hours
IP protection)IP20
Voltage typeAC
