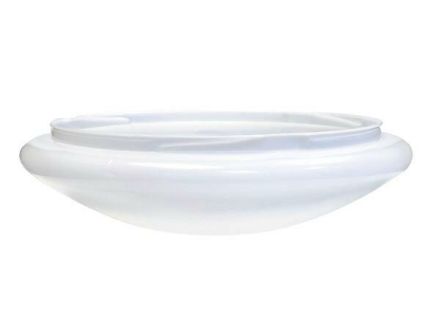

HABMEGA PRO D 300mm 11W 1700lm/1200lm IP54
HANMT77130
GTIN4020856771301
Connection typePlug-in terminal
Type of wiringSuitable for through wiring
Execution of the gridWithout
Beam angleExtremely wide beam >80°
Outer diameter300 mm
Rated lifetime L70/B50 at 25 °C50000 hours
Rated luminous flux according to IEC 62722-2-11600lm
Rated ambient temperature according to IEC62722-2-1-30 - 40 °C
Operating deviceNot required
Color consistency (McAdam ellipse)SDCM6
Color temperature3000 - 4000K
Color temperature adjustableStages
Color rendering index CRI80-89
Suitable for surface mountingYes
Suitable for ceiling mountingYes
Suitable for emergency lightingYes
Housing colorOther
Weight0,5
Weight unit kg
Glow wire test according to IEC 60695-2-11Without
Height/Depth89 mm
Short descriptionMEGATRON PRO DECKO 300 mm 11W-1700lm/1200lm/830+840 IP54
Power factor0.9
Luminaire luminous efficacy146lm/W
LampsLED not replaceable
Light emissionDirect
Light colorWhite
Luminous flux adjustableStages
Light distributorDiffuser lens/optics/panel
Light distributionSymmetrical
Max. system performance11 W
With operating deviceYes
With light sourceYes
Nominal voltage178 - 260V
Surface protection housingOther
Without dimming functionYes
Number of poles3
Impact resistanceIK03
IP protection)IP54
Protection classI
Voltage typeAC/DC
Cover materialPlastic structured
Housing materialSteel
