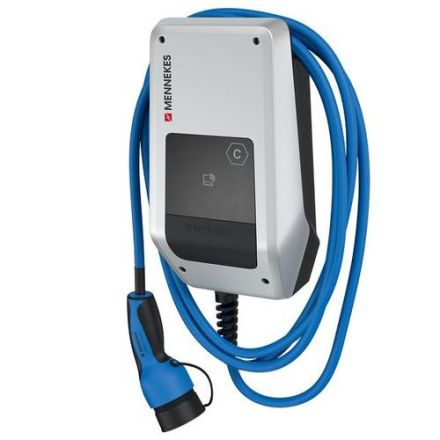

MENNEKES 1321301205 AMTRON Compact 2.0s 11 C2 Wallbox

In stock
SKU: 834123
€1,064.56
Into a basketIn the basketGo

Overview

The AMTRON® Compact 2.0s wallbox is ideal for homeowners and rental property owners with rented parking spaces who want to charge their electric vehicle at home easily, conveniently and safely. As a modern charging station for private use, the MENNEKES charging solution combines the properties of easy handling and compact design with sophisticated, state-of-the-art electronics. AMTRON® Compact 2.0s's space-saving design makes it particularly suitable for use in tight garages or parking spaces at home. The firmly attached, 7.5-meter-long Type 2 charging cable offers plenty of freedom of movement and flexibility. In addition to easy charging and user-friendliness, AMTRON® Compact 2.0s scores with additional, attractive features. The highlight: The wallbox is equipped with a solar charging function. This means that self-generated, stored energy from your own roof can be used effectively to charge your electric car in an environmentally friendly way. AMTRON® Compact 2.0s complies with all current safety standards. Thanks to the integrated access protection via an RFID card system, the user can also safely charge electrically in carports or in freely accessible areas at home and restrict access to the wallbox. The charging point can be easily integrated into the existing energy management system of buildings via an open Modbus RTU interface.

Property Value
Height: 361 mm
Width: 207 mm
Depth: 146 mm
Protection class (IP): IP44
Impact resistance: IK10
Nominal connected load: 11 kW
Max. Output per charging point: 11 kW
System side connection design: 3-phase
Mounting type: Wall mounting
Housing material: Plastic
Number of charging points: 1
Number of charging couplings type 2: 1
Access control function: yes
With energy meter: no
With house connection box (HAK): no
With communication interface: yes
With load management: yes
With circuit breaker: no

Characteristics

HABAMTRON Compact 2.0s 11 C2
ManufacturerMENNEKES
HAN1321301205
GTIN4015394296126
Width207 mm
Height361 mm
Mounting typeWall mounting
Impact resistanceIK10
IP protection)IP44
Depth146 mm
Housing materialPlastic
