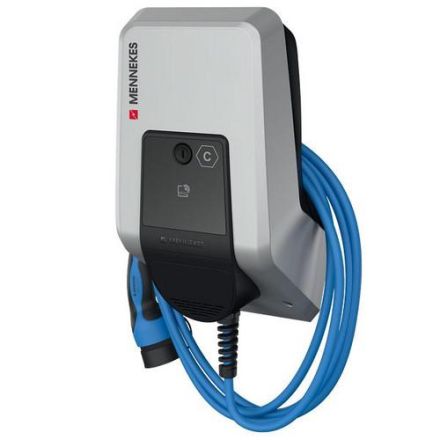

MENNEKES AMTRON® Wallbox impresses with future-proof, smart technology in the private sector, high-quality and functional design with integrated cable suspension, consumption can be read on the outside of the device via the meter window, can be networked locally via LAN (RJ45), charging and load management, connection of intelligent energy management systems via Modbus TCP or EEBus, future connection to Smart Meter Gateway directly via EEBus or via an external energy management system, connection of an external MODBUS TCP meter for local blackout protection, operating status of the wallbox is visualized by four different colored LEDs (ready for operation, charging in progress, waiting time and fault are indicated by the colors blue, green, white and red), charging power up to 3.7 kW (1ph) / 11 kW (3ph), max. charging power can be adjusted on the device by a qualified electrician, permanently connected charging cable, length 7.5m with charging coupling type 2 for mode 3 charging, DC residual current monitoring > 6 mA, no Data transmission in accordance with legal metrology is possible, no retrofitting to legal metrology compliance is possible. Residual current and circuit breakers must be installed on site. Authorization via autostart or RFID card, 3 user RFID cards included, EEBus will only be made available with a later software update, exports of charging statistics and evaluations as well as user management are not possible, protection class IP 44,
Property | Value |
Height: | 475 mm |
Width: | 259 mm |
Depth: | 220 mm |
Protection class (IP): | IP44 |
Impact resistance: | IK10 |
Rated connected load: | 11 kW |
Max. Output per charging point: | 11 kW |
System side connection design: | 3-phase |
Mounting type: | Wall mounting |
Housing material: | Plastic |
Number of charging points: | 1 |
Number of charging couplings type 2: | 1 |
Access control function: | yes |
With energy meter: | yes |
With house connection box (HAK): | no |
With communication interface: | yes |
With load management: | yes |
With circuit breaker: | no |
