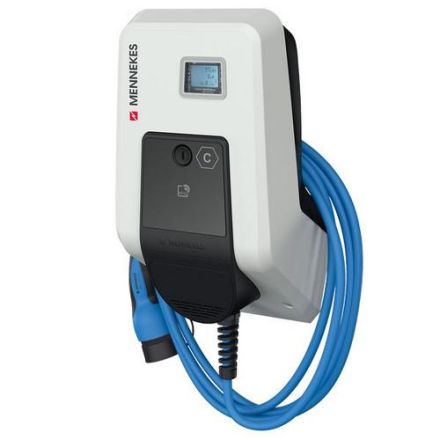

The intelligent MENNEKES AMTRON® wallbox for all customers who organize professional operations using a backend, such as charging infrastructure operators from industry and commerce. The device is prepared for connection to a professional billing service. This service is activated by registering and using the (web) application for the MENNEKES billing service. The final costs can be viewed in the app. This service is only available in Germany. The MENNEKES billing service is a product of MENNEKES Digital Service GmbH. MENNEKES Digital Service GmbH is a 100% subsidiary of MENNEKES Elektrotechnik GmbH + Co. KG. Detailed information (terms of use) and the download or access to the (web) app can be found at www.MENNEKES.de. HIGH-QUALITY AND FUNCTIONAL DESIGN with integrated cable suspension. AUTHORIZATION via backend (e.g. APP) or RFID card COMMUNICATION / NETWORKING Can be networked locally via LAN (RJ45) Backend connection via local Internet (LAN) or a Professional+ Compatible with OCPP 1.5 and OCPP 1.6 Plug and Charge function / ISO 15118 CHARGING AND LOAD MANAGEMENT Dynamic and phase-accurate load management for up to 100 charging points. Connection of an external MODBUS TCP meter for local blackout protection. Connection of intelligent energy management systems via Modbus TCP. DISPLAY OF OPERATING STATUS using four different colored symbols: Ready for operation: Blue, Charging active: Green Waiting time: White Fault: Red Charging power up to 22 kW (3ph) The charging power can be adjusted on the device by a qualified electrician. Permanently connected charging cable, length 7.5m with charging coupling type 2 for mode 3 charging MID certified energy meter that can be read from the outside. Including data transmission of signed measured values in accordance with calibration law. Compliant with calibration law according to type examination certificate DE-20-M-PTB-0021 DC residual current monitoring > 6mA Integrated residual current (type A) and circuit breaker (32 A) MULTIFUNCTION BUTTON with trigger function for the residual current circuit breaker and with restart function for residual current circuit breaker Protection class IP 44 Shock resistance IK 10 3 user RFID cards included in delivery
