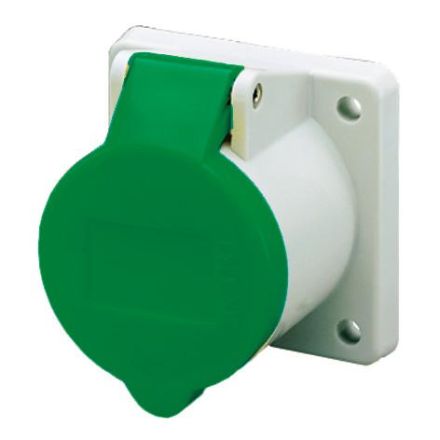

MENNEKES 1434 16A, 4p, CEE panel socket

MENNEKES 1434 16A, 4p, CEE panel socket

In stock

SKU: 547750

Price on request

€77.69

€0

Into a basketIn the basketGo

Overview

16A4P10H>50V100-300Hz mounting box TA IP 44 FL. 72 X 65 mm BL. 52 X 52 mm

< td>65 mm

Property	Value
IEC current:	16 A
UL/CSA current (if UL version required):	20 A
Number of poles:	4
Connection technology:	Screw terminal
Plug direction:	straight
Voltage according to EN 60309-2:	50-500 V (100-300 Hz) green
Time position:	10 h
Identification colour:	green
Protection class (IP):	IP44
Material:	Plastic
Military version:	no
Horizontal hole spacing:	52 mm
Hole spacing vertical:	52 mm
Flange dimension horizontal:
Flange dimension vertical:	72 mm
Cable entry:	other
Rated voltage:	50 to 500 V
Rated frequency:	100 to 300 Hz

Characteristics

Rated frequency100 to 300 Hz

HAB16A, 4p, 1434

Manufacturer

HAN1434

GTIN4015394010760

Connection technologyScrew terminal

Rated voltage50 to 500 V

IEC current16A

Cable entryOther

Identification colorGreen

Military versionNo

Number of poles4

IP protection)IP44

Voltage according to EN 60309-250-500 V (100-300 Hz) green

Plug directionStraight

UL/CSA current rating (if UL version required)20A

Time position10 hrs

MaterialPlastic
