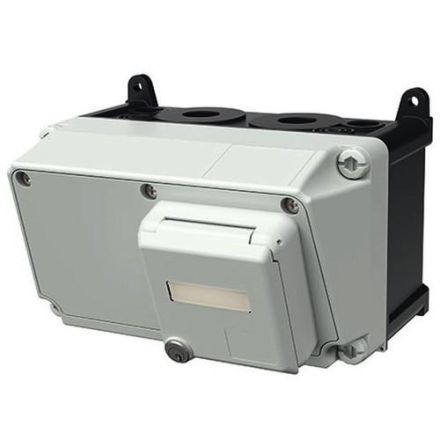

MENNEKES 25107 AMAXX IP44 network enclosure

In stock
SKU: 774426
€369.48
Into a basketIn the basketGo

Overview

MENNEKES network housing AMAXX AMAPLAST housing 130 x 225mm protection class IP 67 lower part black upper part electro grey RAL 7035 with 1 data socket Cepex (order no. 4362G) for 2 RJ45 quick connection sockets, Cat. 6, make AMP (type TWIST 6SL Jack) same locking Scope of delivery: without data modules Cable entries: 2x M 25 top (locked) 2x M 25 bottom (locked) 2x M 20 each top and bottom (locked) Lower part with screw-in nuts for holding the floor mounting plate 1x mounting rail with mounting rail catches 1x cable gland set included (1 M25 screw connection, 1 multiple seal with 3 openings for a cable diameter of 5-7mm including matching blind plugs, 1 blind sealing seal for customer-side perforation) With the existing equipment, the network housing can be installed free-standing or next to or below an existing AMAXX combination.

Property Value
Number of doors: 1
Depth: 245 mm
Width: 188 mm
Height: 228 mm
With front door: no
Material: Plastic
Can be dismantled: no
RAL number: 7035
With earthing: no
Protection class (IP): IP44
Color: gray
With roof plate: no
With side walls: no
Number of height units (HE): 1

Characteristics

Number of height units (HE)1
HABAMAXX IP44 25107
ManufacturerMENNEKES
HAN25107
GTIN4015394242932
Width188 mm
ColorGray
Height228 mm
RAL number7035
IP protection)IP44
Depth245 mm
MaterialPlastic
