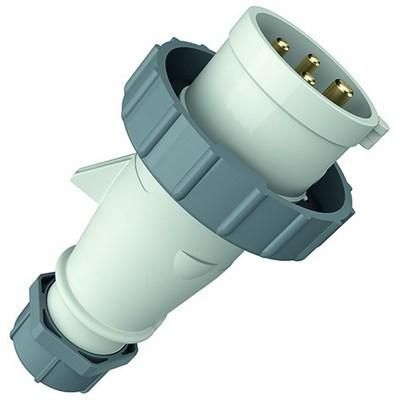

MENNEKES 889 AM-TOP 32A 4-pin 12h IP67 plug

MENNEKES 889 AM-TOP 32A 4-pin 12h IP67 plug

In stock

SKU: 547758

Price on request

€161.54

€0

Into a basketIn the basketGo

Overview

Plug AM-TOP, 32A4p12h according to TR, IP67

Property	Value
IEC current:	32 A
Number of poles:	4
Voltage according to EN 60309-2:	after isolating transformer
UL/CSA current (if UL version required):	30 A
Identification color:	gray
Phase inverter:	no
Protection class (IP):	IP67
Connection technology:	screw terminal
Cable entry:	screw connection
Plug direction:	straight
Time setting:	12 h
Material:	plastic
Military version:	no
RAL number:	3013

Characteristics

Phase inverterNo

HABAM-TOP 32A 4-pole 12h IP67

Manufacturer

HAN889

GTIN4015394006411

Connection technologyScrew terminal

IEC current32 A

Cable entryScrew connection

Identification colorGray

Military versionNo

Number of poles4

RAL number3013

IP protection)IP67

Voltage according to EN 60309-2After isolation transformer

Plug directionStraight

UL/CSA current rating (if UL version required)30A

Time position12 hrs

MaterialPlastic

MENNEKES 889 AM-TOP 32A 4-pin 12h IP67 plug

MENNEKES 889 AM-TOP 32A 4-pin 12h IP67 plug

Price on request

€161.54

€0

Into a basketIn the basketGo
